Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

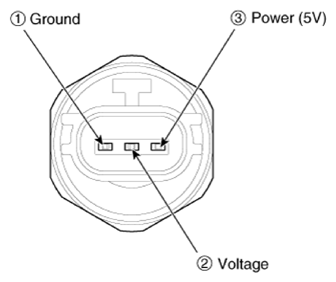

  1. Measure the pressure of high pressure line by measuring voltage output between terminal "1" and "2".
    G13482210Courtesy of KIA MOTORS AMERICA, INC.
  2. Inspect the voltage value whether it is sufficient to be regular value or not.

    Voltage = 0.00878835 * Pressure + 0.37081095

  3. If the measured voltage value is not within specification, replace the A/C pressure transducer.
