Propeller Shaft Runout
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

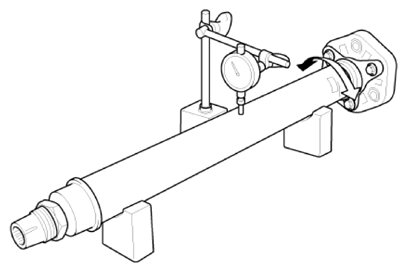

- Install a dial indicator with its needle on the center of front propeller shaft or rear propeller shaft.
- Turn the propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.
Propeller Shaft Runout:
0.3 mm (0.012 in.)
 Courtesy of KIA MOTORS AMERICA, INC.
|
