Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

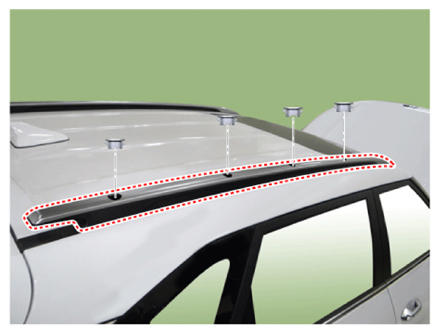

- Using a screwdriver or remover, remove the roof rack cap.
 Courtesy of KIA MOTORS AMERICA, INC.
|

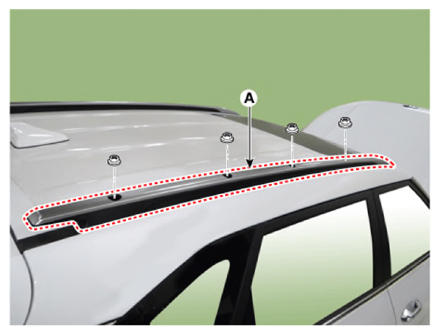

- After loosening the mounting nuts, remove the roof rack assembly (A).
Tightening torque:
3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reinstall in reverse order of removal procedure.
