Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

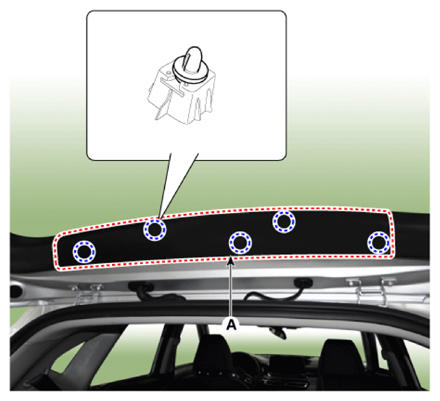

Using a screwdriver or remover, remove the tailgate upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

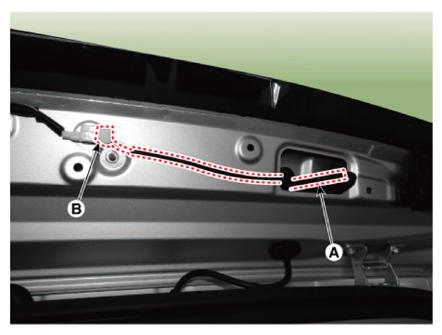

Separate the rear stop lamp connector (B) and rear washer nozzle (A).

Courtesy of KIA MOTORS AMERICA, INC.

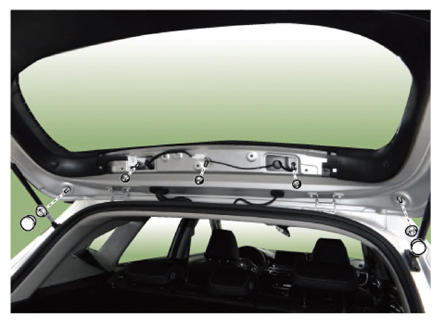

Remove the cap and then loosen the rear spoiler mounting nuts.
Tightening torque:

5.9 - 6.4 N.m (0.6 - 0.65 kgf-m, 4.3 - 4.7 lb.ft, 52.1 - 56.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

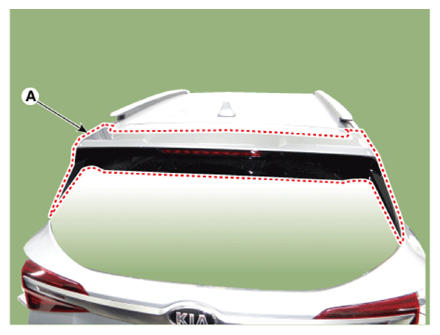

Remove the rear spoiler (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
