Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Front emblem]

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

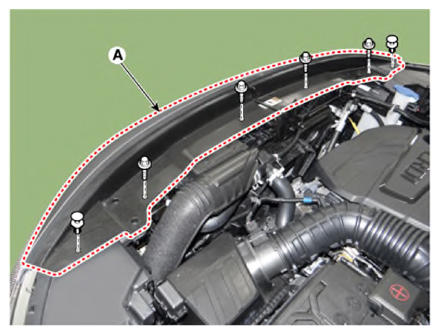

After loosening the mounting clips and bolts, remove the front bumper upper garnish (A).
Tightening torque:

5.9 - 8.8 N.m (0.6 - 0.9 kgf-m, 4.3 - 6.5 lb.ft, 52.1 - 78.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

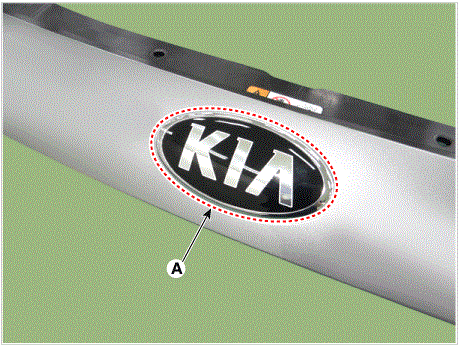

Using a screwdriver or remover, remove the front emblem (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.

[Rear emblem]

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Remove the tailgate garnish.
(Refer to Body Side Molding - "TAILGATE GARNISH ")

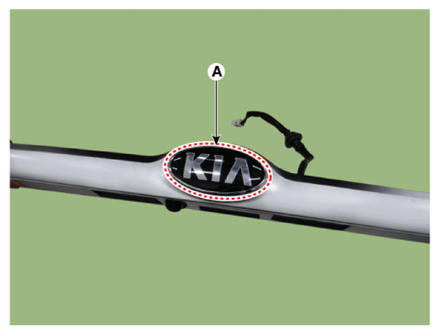

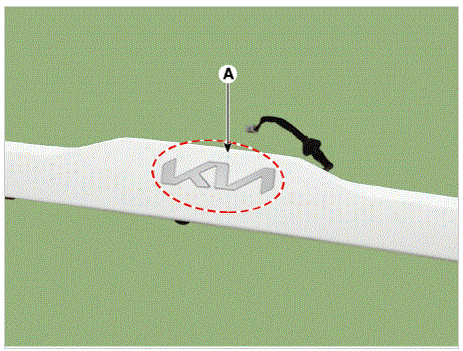

After loosening the mounting screws, then remove the rear emblem (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
