Sub Woofer Speaker

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

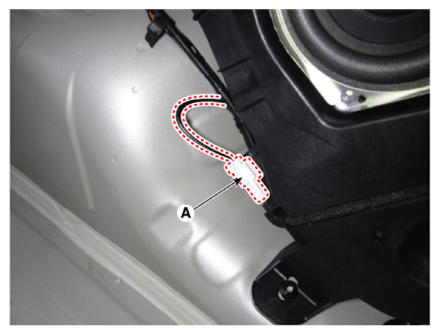

  3. Disconnect the connector (A).
    G13486580Courtesy of KIA MOTORS AMERICA, INC.

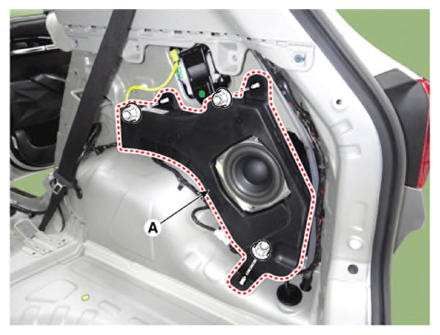

  4. Remove the sub woofer speaker (A) by loosening the mounting nuts.
    G13486581Courtesy of KIA MOTORS AMERICA, INC.
