Rear Door Speaker

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

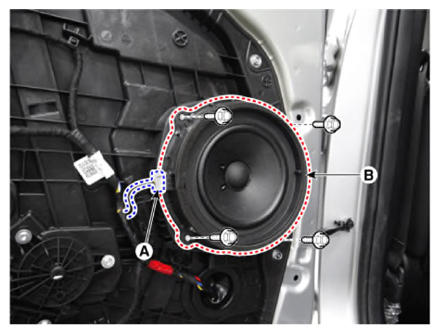

  2. Disconnect the connector (A) and then remove rear door speaker (B) by loosening the bolts.
G13486574Courtesy of KIA MOTORS AMERICA, INC.
