Crash Pad Center Speaker

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

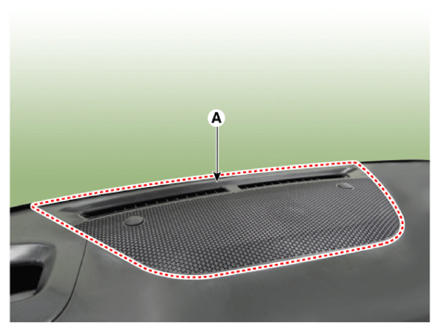

  2. Remove the center speaker grille (A).
    G13486576Courtesy of KIA MOTORS AMERICA, INC.

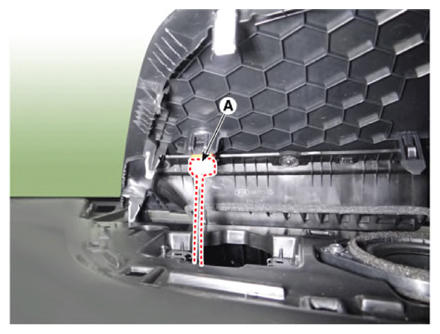

  3. Disconnect the photo sensor & auto light sensor connector (A).
    G13486577Courtesy of KIA MOTORS AMERICA, INC.

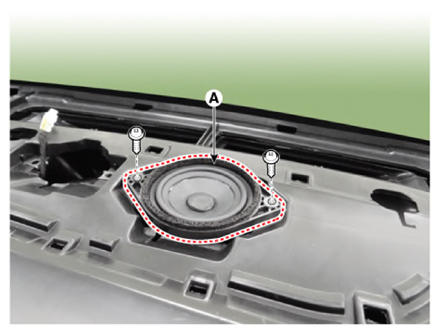

  4. Remove the center speaker (A) after loosening the mounting screws.
    G13486578Courtesy of KIA MOTORS AMERICA, INC.

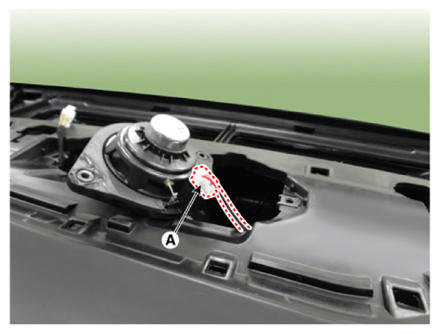

  5. Disconnect the center speaker connector (A).
    G13486579Courtesy of KIA MOTORS AMERICA, INC.
