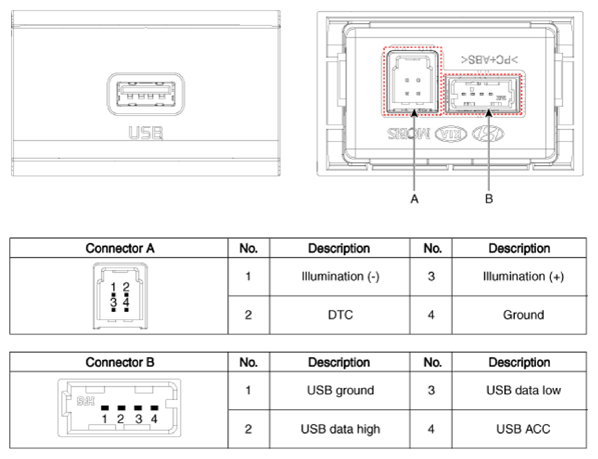

Display Audio/AVN

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
G13486603Courtesy of KIA MOTORS AMERICA, INC.
