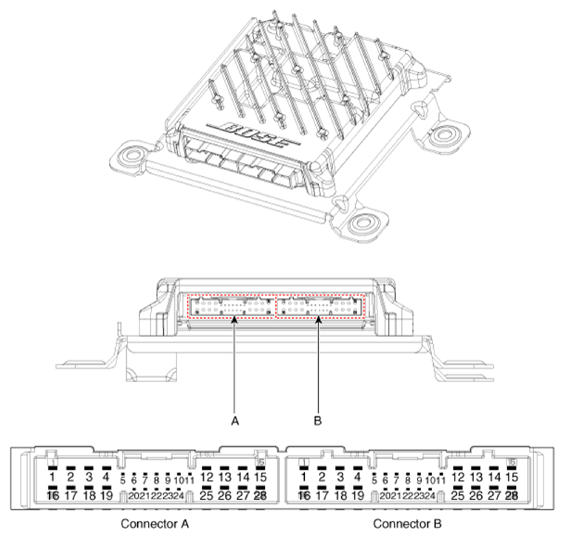

Connector And Terminal Function
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function | |
|---|---|---|
| Connector A | Connector B | |
| 1 | Battery (+) | Right front door tweeter speaker (+) |
| 2 | Battery (+) | Left front door tweeter speaker (+) |
| 3 | Battery (+) | Sub woofer speaker (+) |
| 4 | Battery (+) | - |
| 5 | - | - |
| 6 | MM-CAN (High) | - |
| 7 | MM-CAN (Low) | Amplifier navigation voice (+) |
| 8 | ACC | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | Right rear door speaker (+) |
| 13 | - | Left rear door speaker (+) |
| 14 | - | Center speaker (+) |
| 15 | - | - |
| 16 | Ground | Right front door tweeter speaker (-) |
| 17 | Ground | Left front door tweeter speaker (-) |
| 18 | Ground | Sub woofer speaker (-) |
| 19 | Ground | - |
| 20 | Amplifier SPDIF (High) | - |
| 21 | Amplifier SPDIF (Low) | Amplifier navigation voice (-) |
| 22 | Amplifier SPDIF (Ground) | - |
| 23 | - | - |
| 24 | IGN1 | - |
| 25 | - | Right rear door speaker (-) |
| 26 | - | Left rear door speaker (-) |
| 27 | - | Center speaker (-) |
| 28 | - | - |
