Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front pillar trim.
    1. To remove the front pillar trim, the fastener remover (A) below must be used.
      G13486333Courtesy of KIA MOTORS AMERICA, INC.

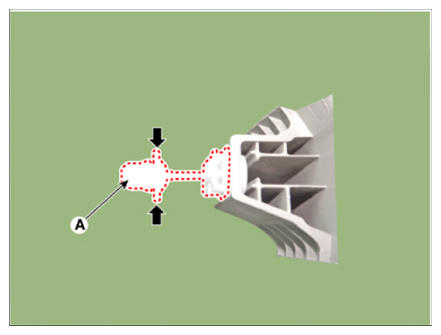

    2. After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.
      NOTE: Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.
      G13486334Courtesy of KIA MOTORS AMERICA, INC.

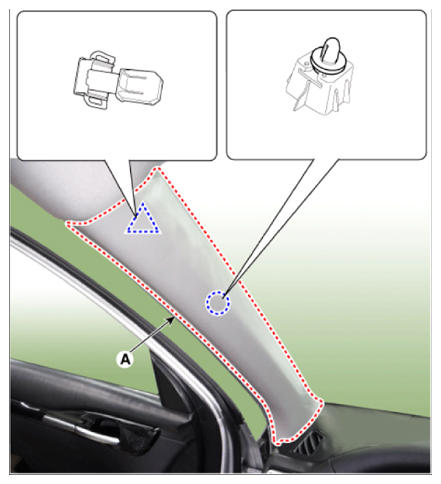

    3. Remove the front pillar trim (A).
      G13486335Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reinstall in reverse order of removal procedure.

    Information

    • Replace any damaged clips (or pin - type retainers).

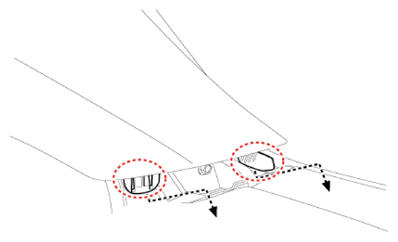

      G13486336Courtesy of KIA MOTORS AMERICA, INC.
    • Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.

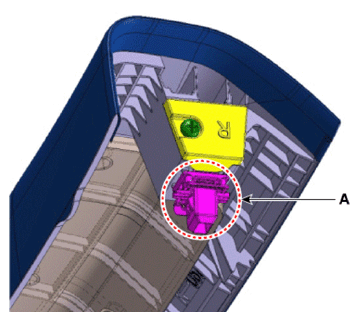

    • Loosen the screw, remove the cap, and replace the mounting clip (A).
G13486337Courtesy of KIA MOTORS AMERICA, INC.
