Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
[Front door scuff trim]
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front door body side weatherstrip.

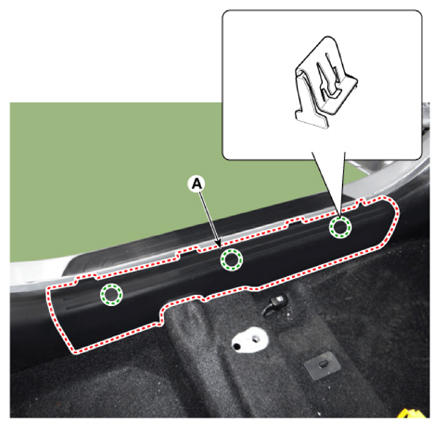

- Using a screwdriver or remover and remove the front door scuff trim (A).
- To install, reinstall in reverse order of removal procedure.
Information
Replace any damaged clips (or pin-type retainers).
[Rear door scuff trim]
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear door body side weatherstrip.
- Remove the rear seat cushion assembly.
(Refer to Rear seat - "REAR SEAT ASSEMBLY ")

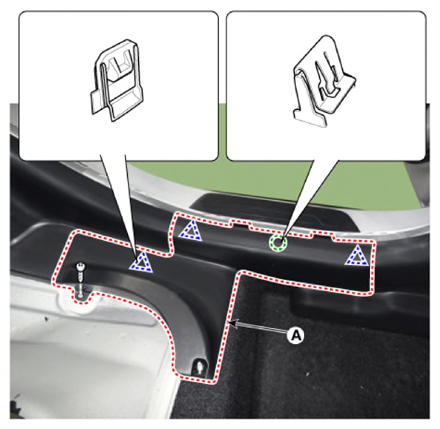

- After loosening the mounting screw, remove the rear door scuff trim (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)
- To install, reinstall in reverse order of removal procedure.
Information
Replace any damaged clips (or pin-type retainers).
