Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat assembly
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Carefully remove the rear door body side weatherstrip.
- Carefully remove the tailgate weatherstrip.
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
- Remove the rear transverse trim.
(Refer to Trunk Trim - "REAR TRANSVERSE TRIM ")

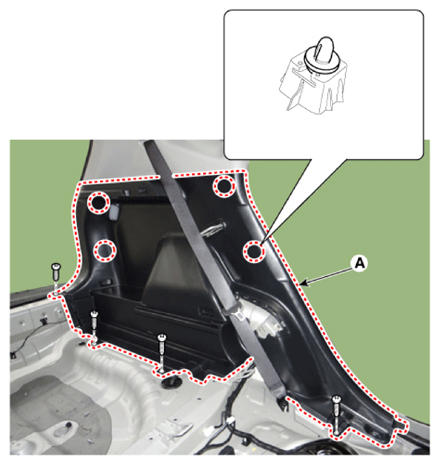

- After loosening the mounting screws, remove the luggage side trim (A).
Tightening torque:
2.0 - 2.9 N.m (0.2 - 0.3 kgf-m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)
- To install, reinstall in reverse order of removal procedure.
Information
place any damaged clips (or pin-type retainers).
