Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601944Courtesy of HYUNDAI MOTOR AMERICA

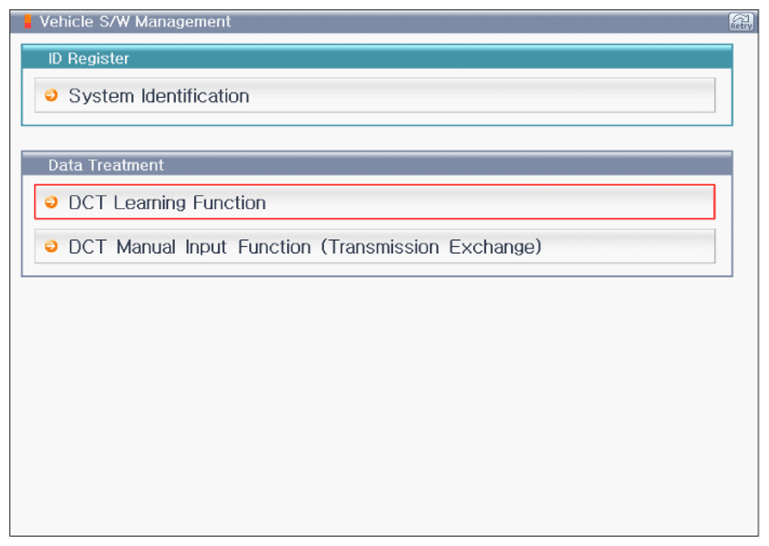

G12601945Courtesy of HYUNDAI MOTOR AMERICA

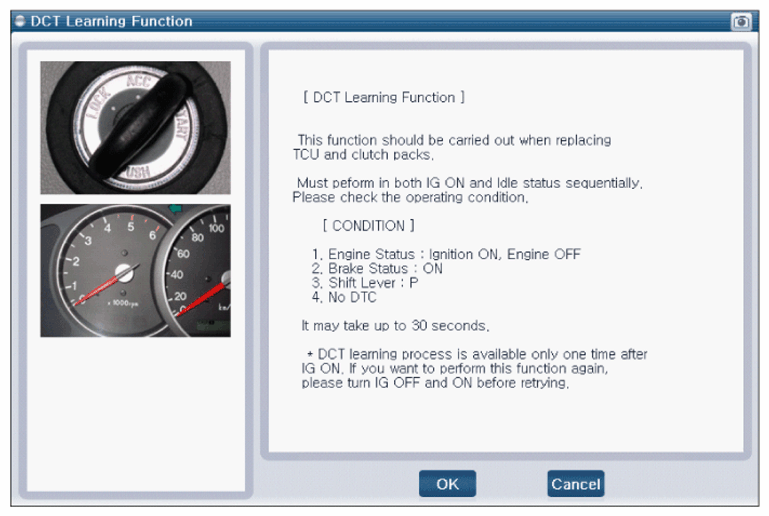

G12601946Courtesy of HYUNDAI MOTOR AMERICA

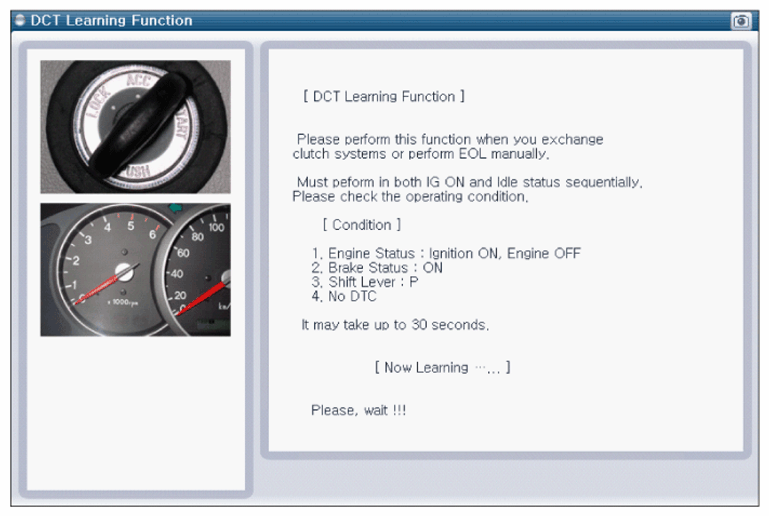

G12601947Courtesy of HYUNDAI MOTOR AMERICA

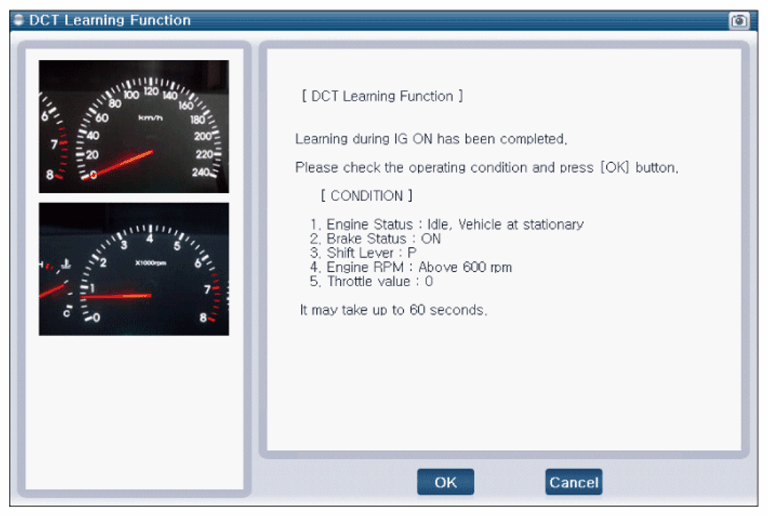

G12601948Courtesy of HYUNDAI MOTOR AMERICA

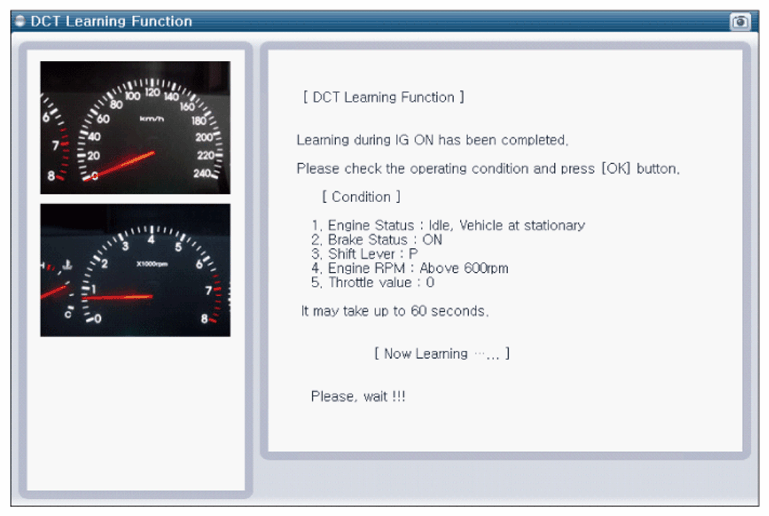

G12601949Courtesy of HYUNDAI MOTOR AMERICA

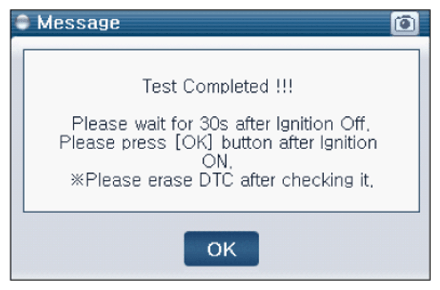

G12601950Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

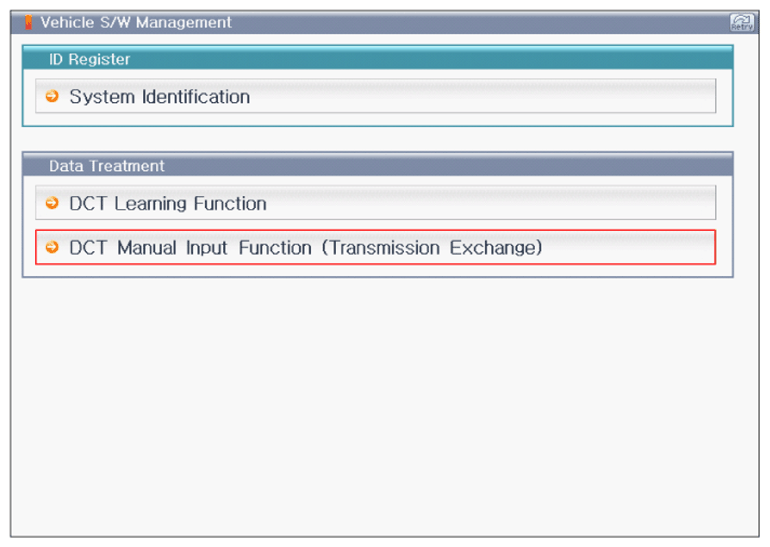

G12601951Courtesy of HYUNDAI MOTOR AMERICA

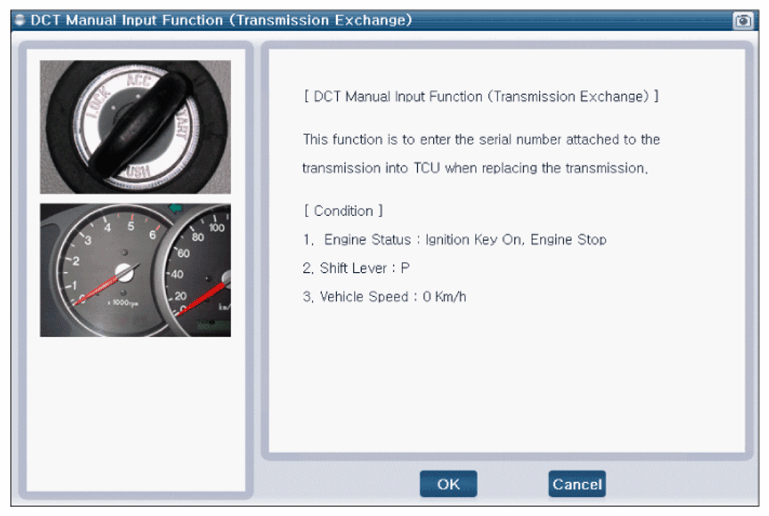

G12601952Courtesy of HYUNDAI MOTOR AMERICA

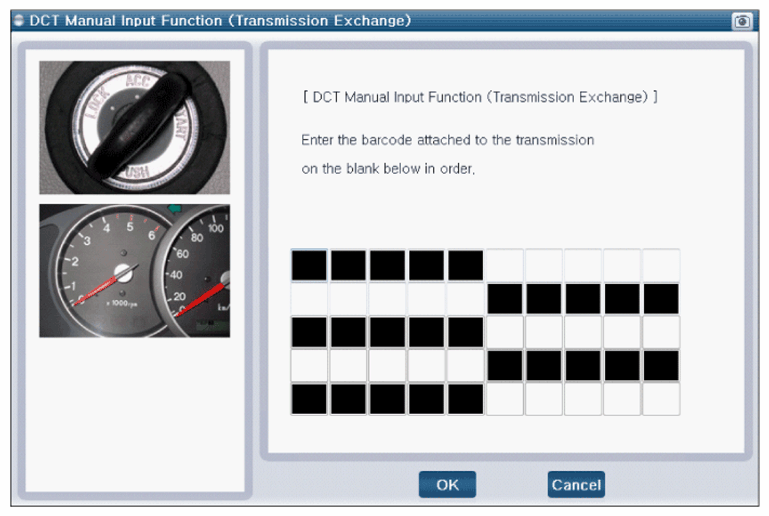

G12601953Courtesy of HYUNDAI MOTOR AMERICA

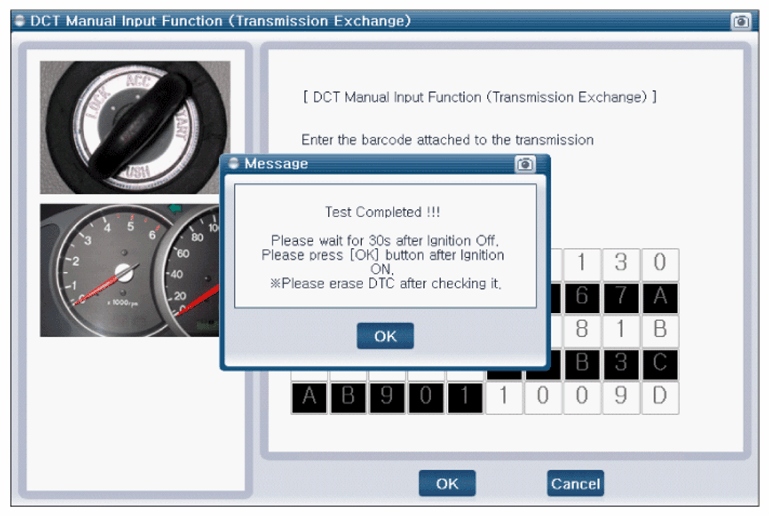

G12601954Courtesy of HYUNDAI MOTOR AMERICA
