Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601884Courtesy of HYUNDAI MOTOR AMERICA

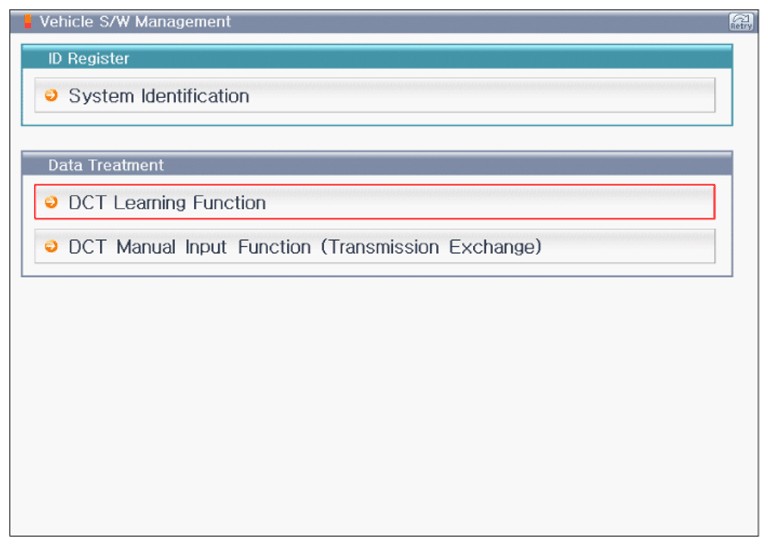

G12601885Courtesy of HYUNDAI MOTOR AMERICA

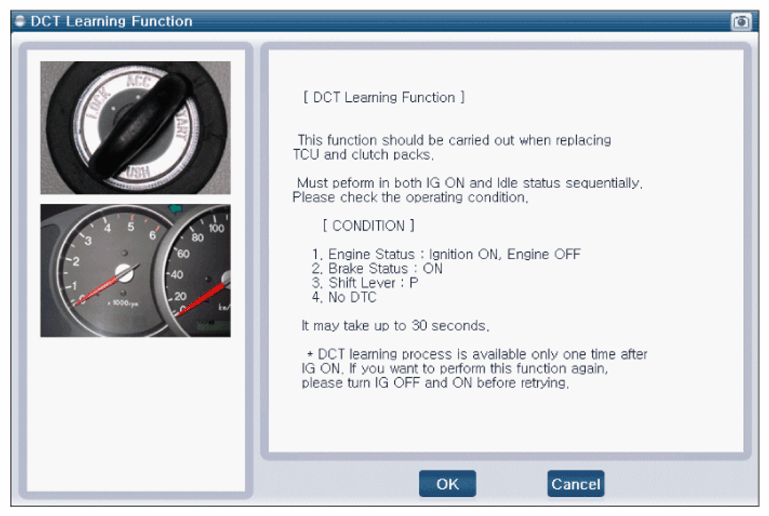

G12601886Courtesy of HYUNDAI MOTOR AMERICA

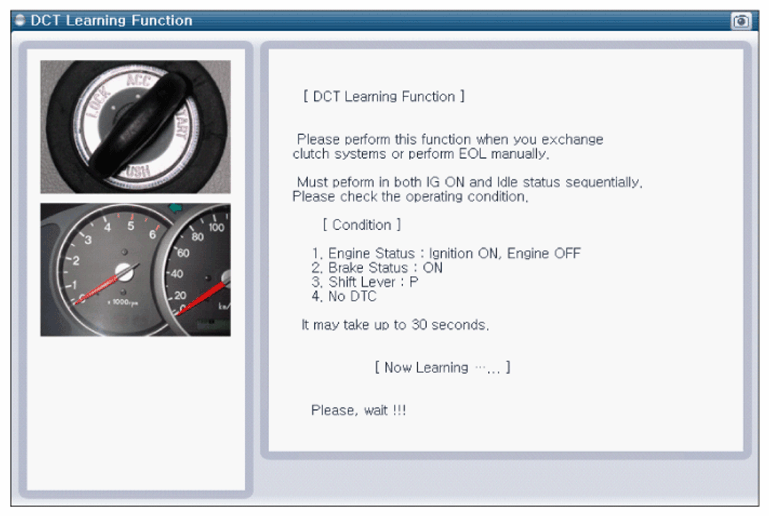

G12601887Courtesy of HYUNDAI MOTOR AMERICA

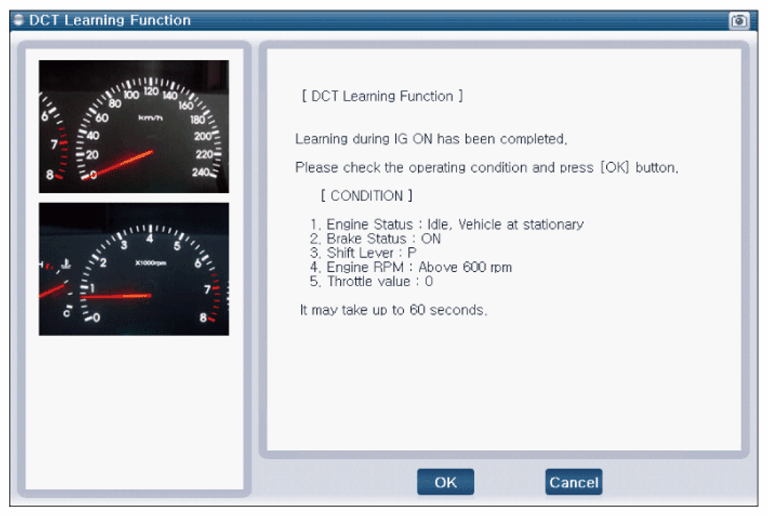

G12601888Courtesy of HYUNDAI MOTOR AMERICA

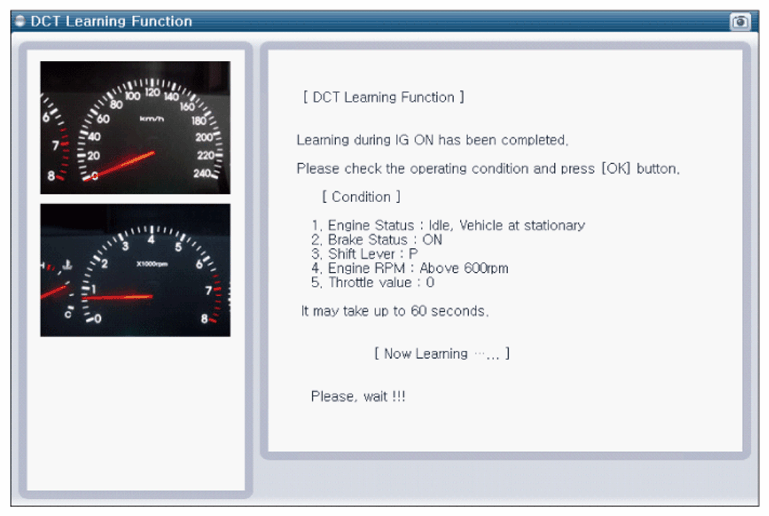

G12601889Courtesy of HYUNDAI MOTOR AMERICA

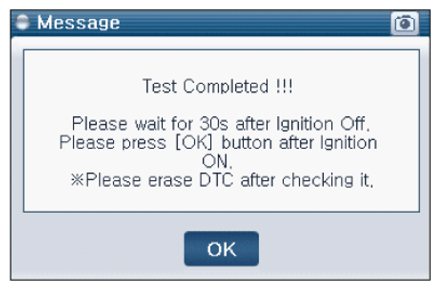

G12601890Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.
G12601891Courtesy of HYUNDAI MOTOR AMERICA

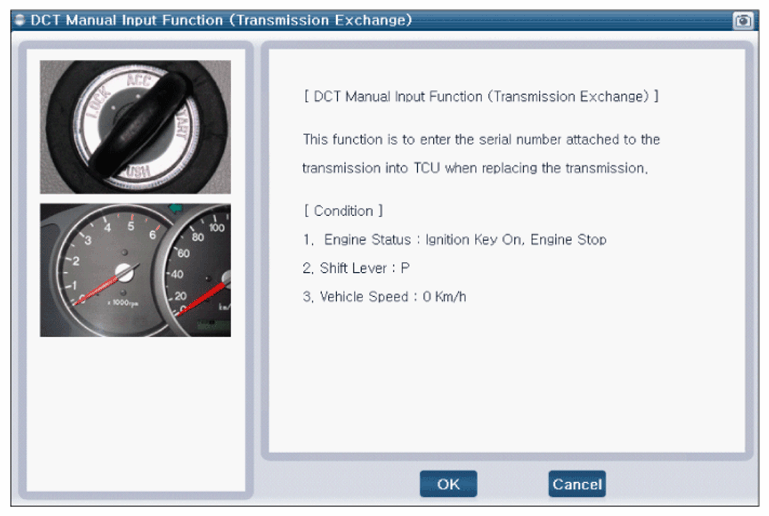

G12601892Courtesy of HYUNDAI MOTOR AMERICA

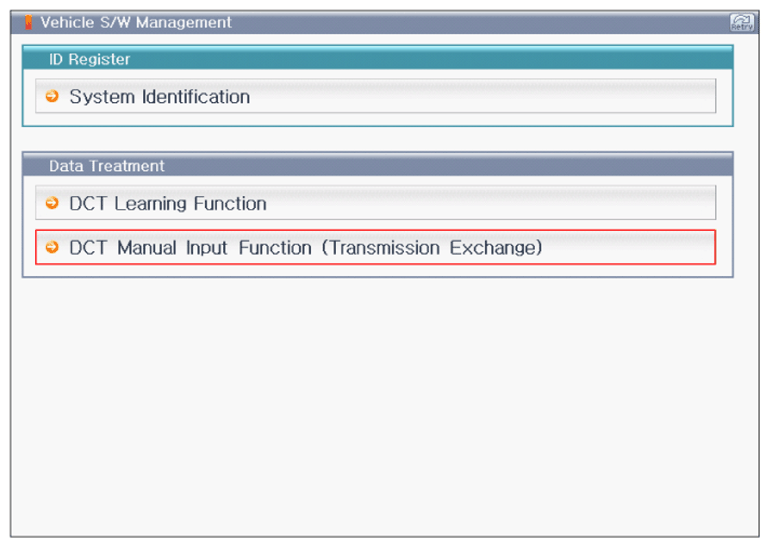

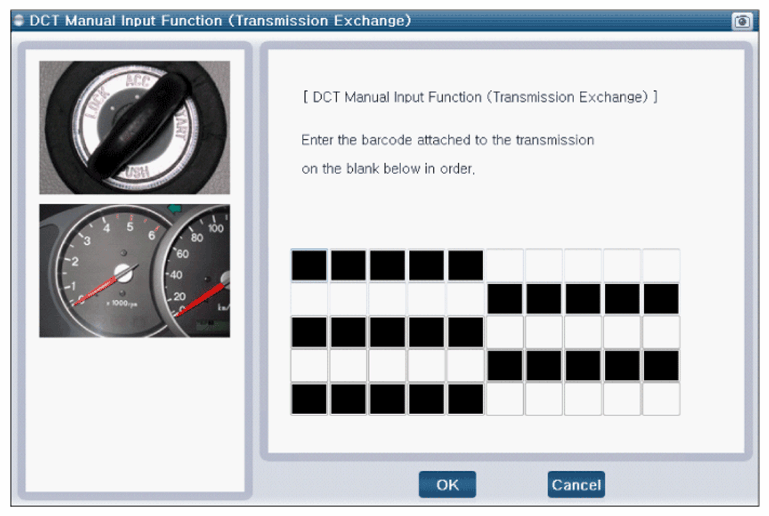

G12601893Courtesy of HYUNDAI MOTOR AMERICA

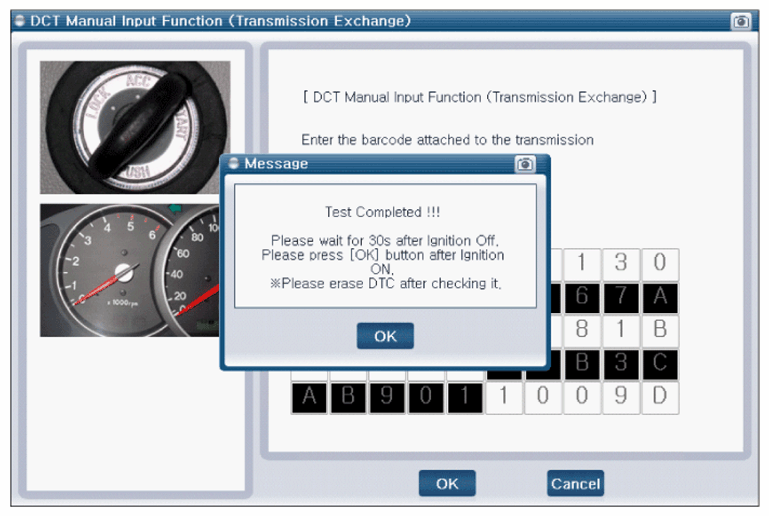

G12601894Courtesy of HYUNDAI MOTOR AMERICA
