Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures

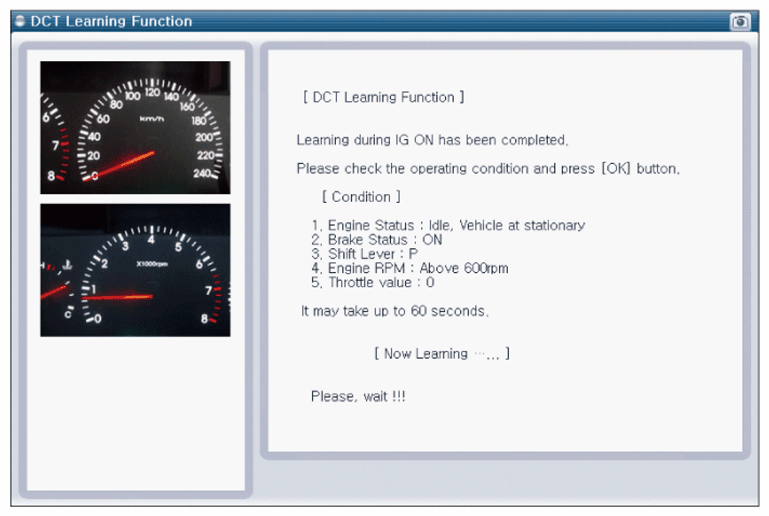

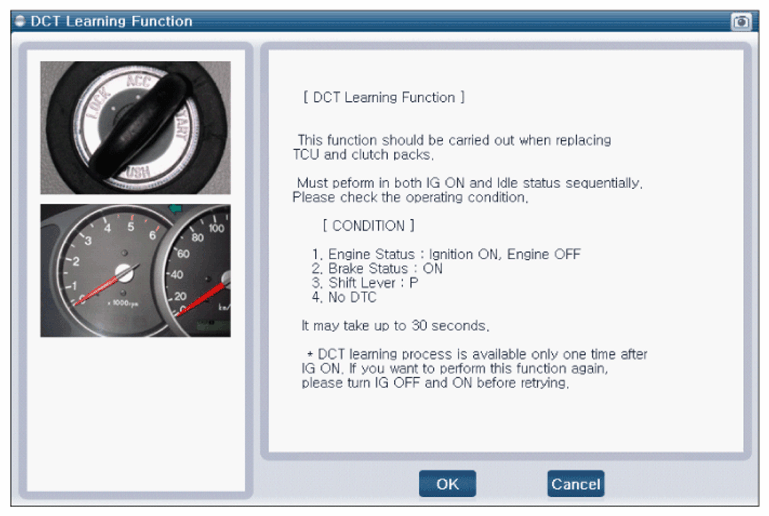

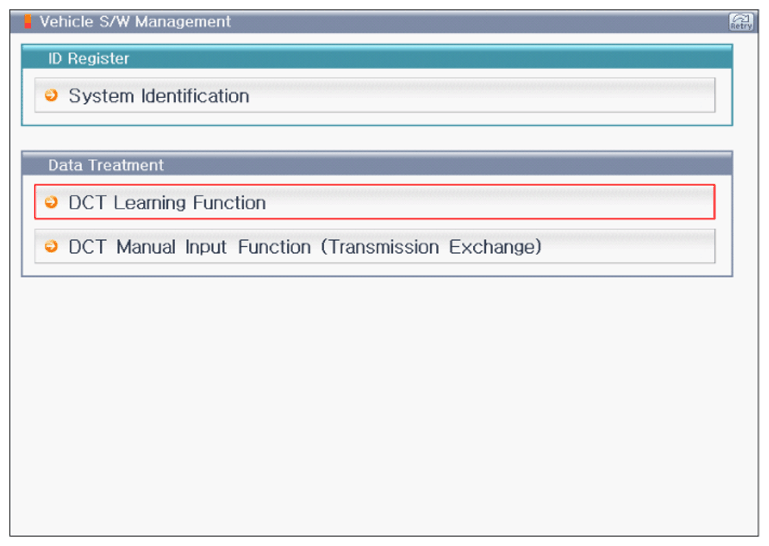

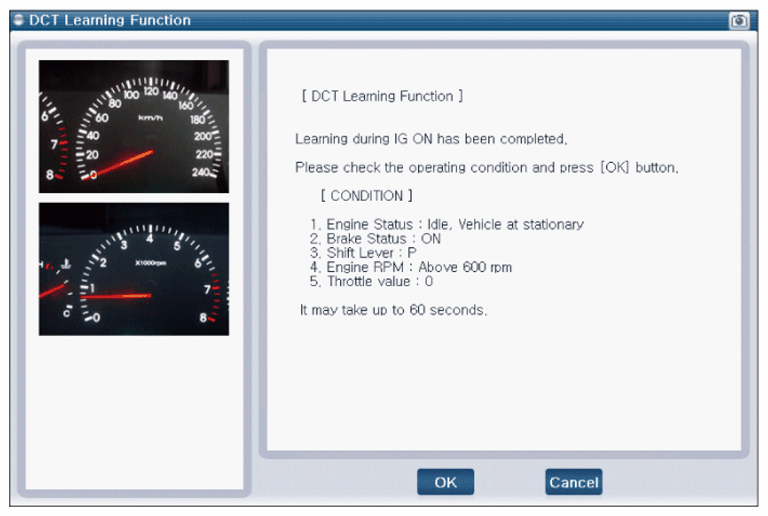

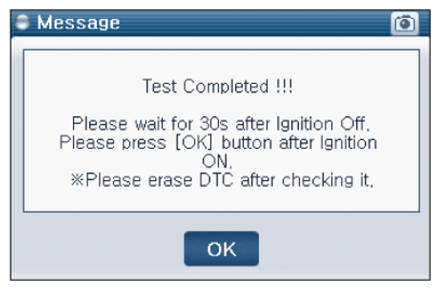

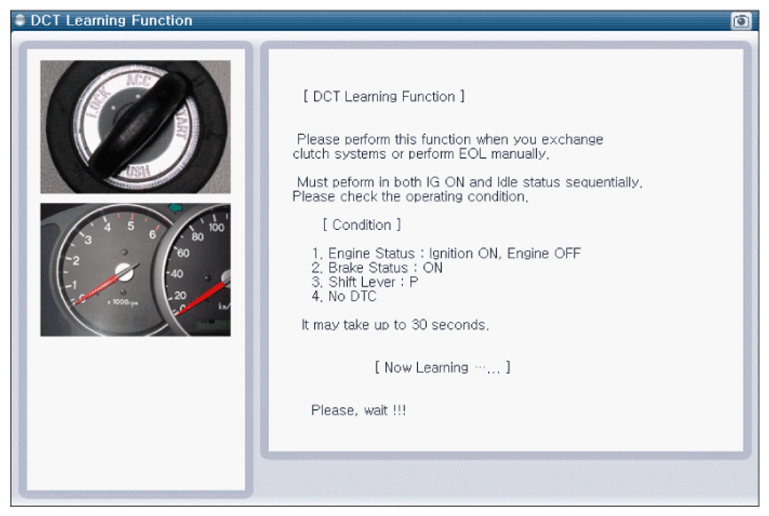

  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601824Courtesy of HYUNDAI MOTOR AMERICA
G12601825Courtesy of HYUNDAI MOTOR AMERICA
G12601826Courtesy of HYUNDAI MOTOR AMERICA
G12601827Courtesy of HYUNDAI MOTOR AMERICA
G12601828Courtesy of HYUNDAI MOTOR AMERICA
G12601829Courtesy of HYUNDAI MOTOR AMERICA
G12601830Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;

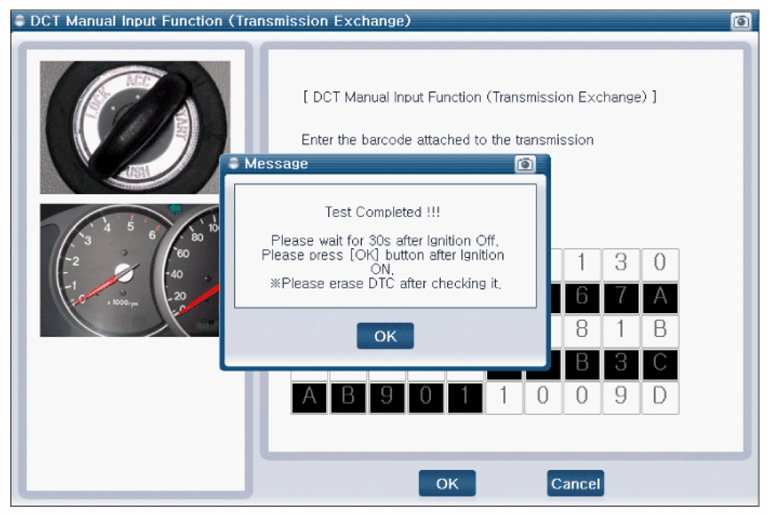

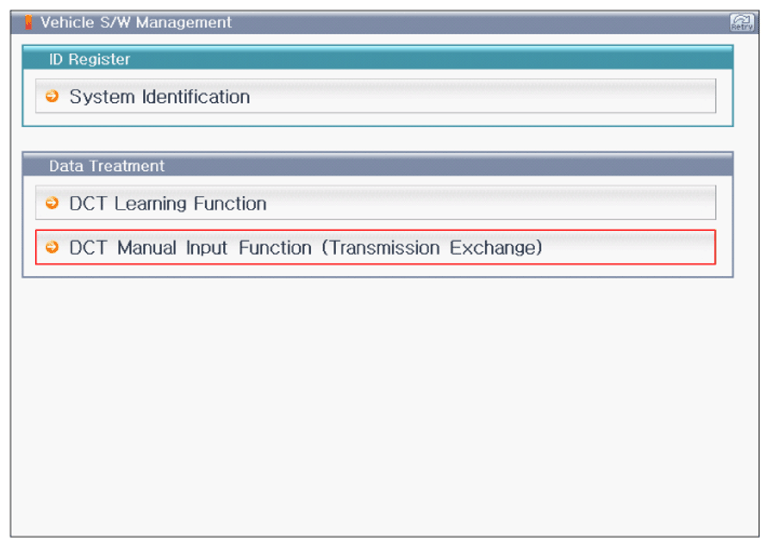

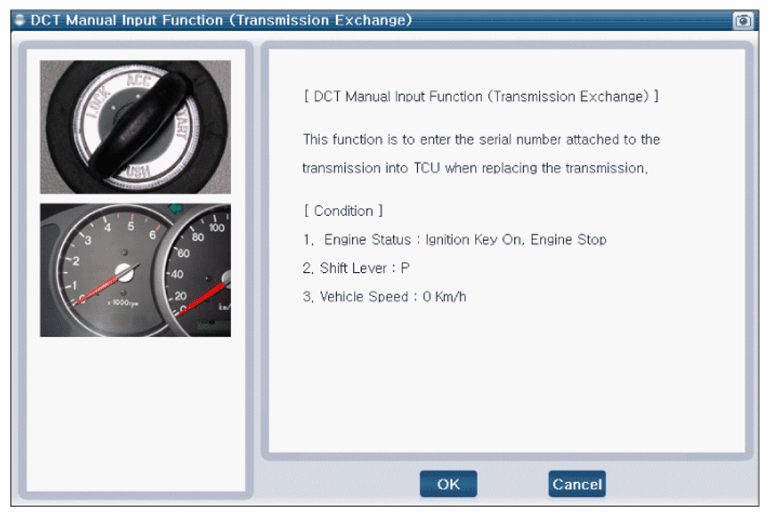

  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.
G12601831Courtesy of HYUNDAI MOTOR AMERICA
G12601832Courtesy of HYUNDAI MOTOR AMERICA
G12601833Courtesy of HYUNDAI MOTOR AMERICA
G12601834Courtesy of HYUNDAI MOTOR AMERICA
