Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601809Courtesy of HYUNDAI MOTOR AMERICA

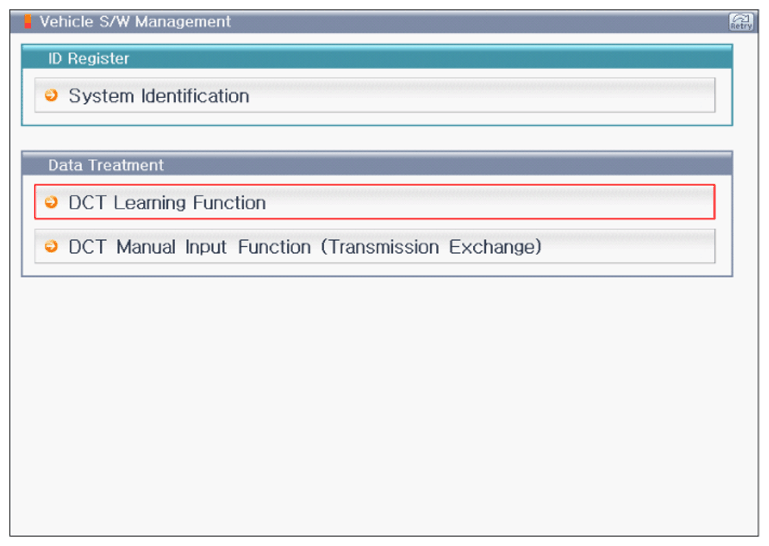

G12601810Courtesy of HYUNDAI MOTOR AMERICA

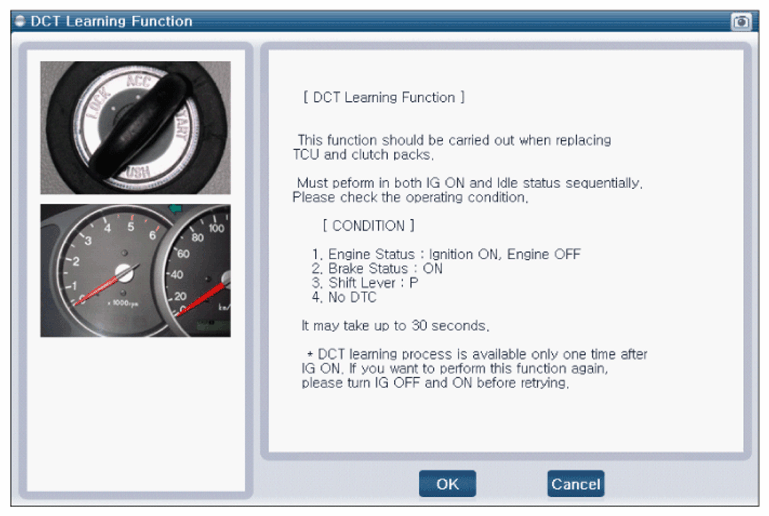

G12601811Courtesy of HYUNDAI MOTOR AMERICA

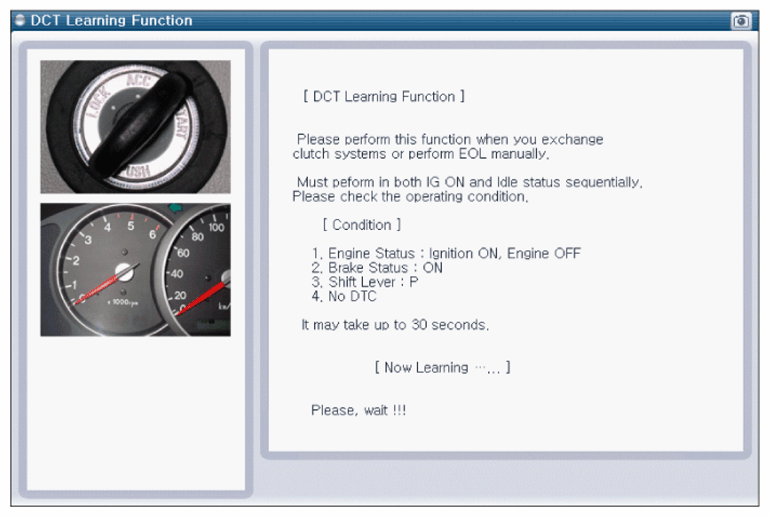

G12601812Courtesy of HYUNDAI MOTOR AMERICA

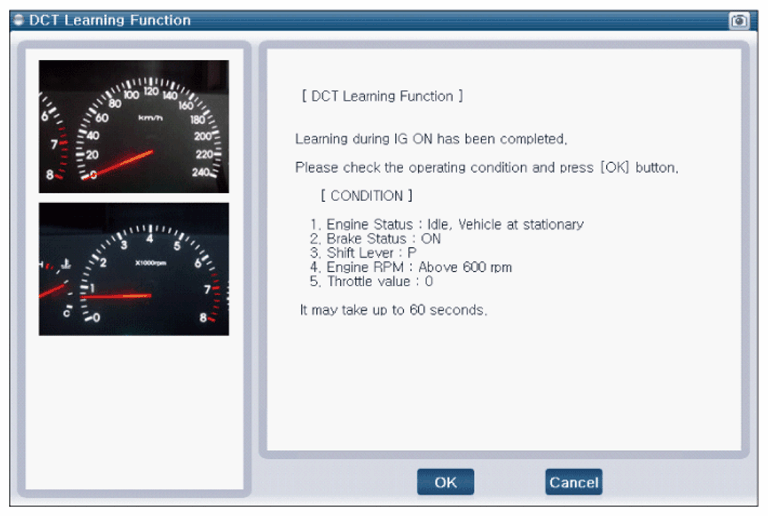

G12601813Courtesy of HYUNDAI MOTOR AMERICA

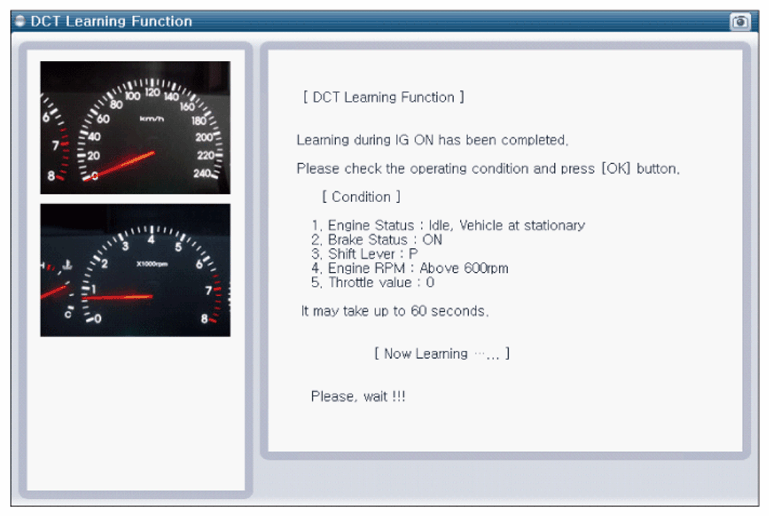

G12601814Courtesy of HYUNDAI MOTOR AMERICA

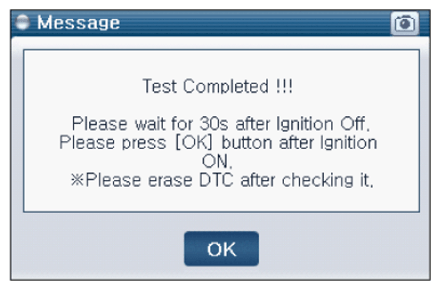

G12601815Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

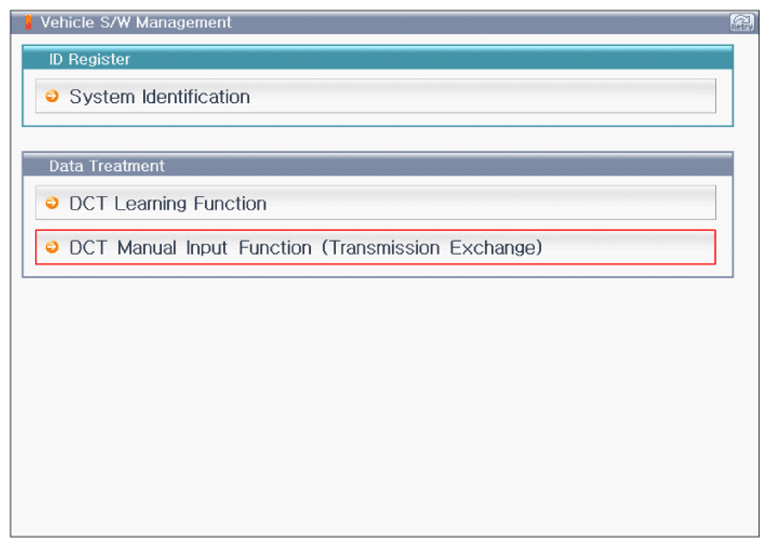

G12601816Courtesy of HYUNDAI MOTOR AMERICA

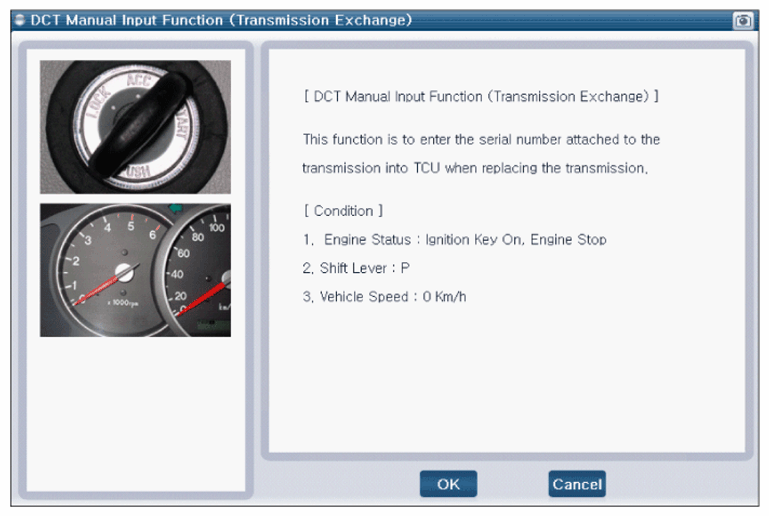

G12601817Courtesy of HYUNDAI MOTOR AMERICA
G12601818Courtesy of HYUNDAI MOTOR AMERICA

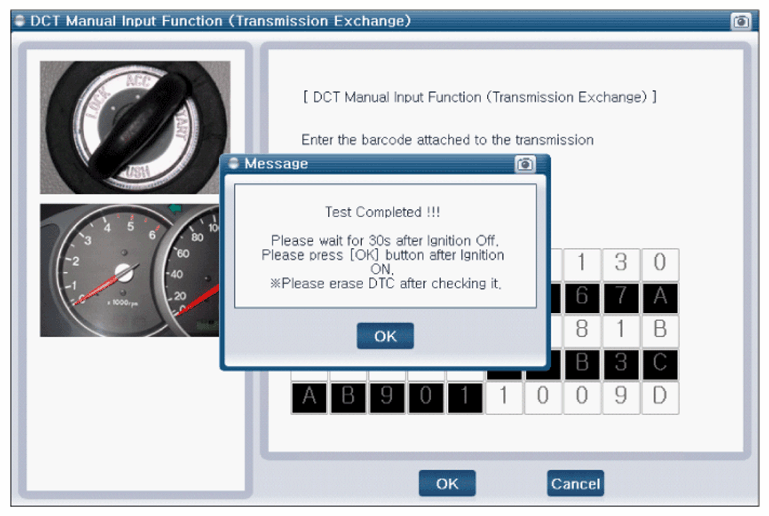

G12601819Courtesy of HYUNDAI MOTOR AMERICA
