Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601794Courtesy of HYUNDAI MOTOR AMERICA

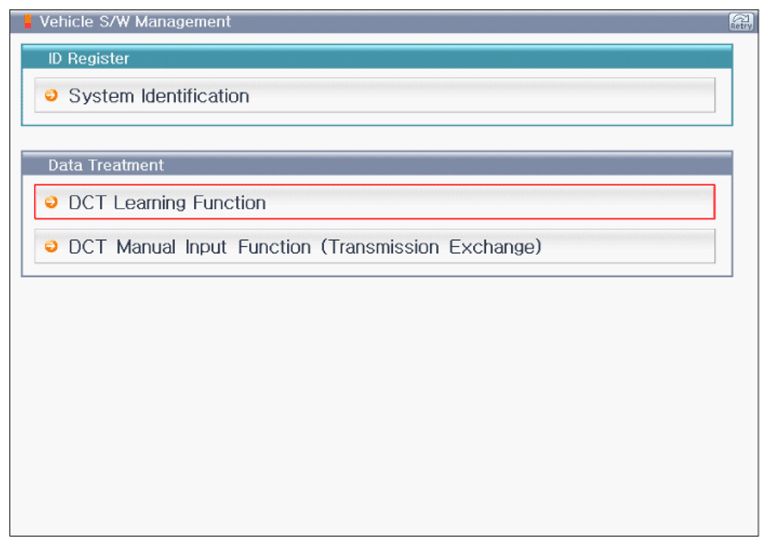

G12601795Courtesy of HYUNDAI MOTOR AMERICA

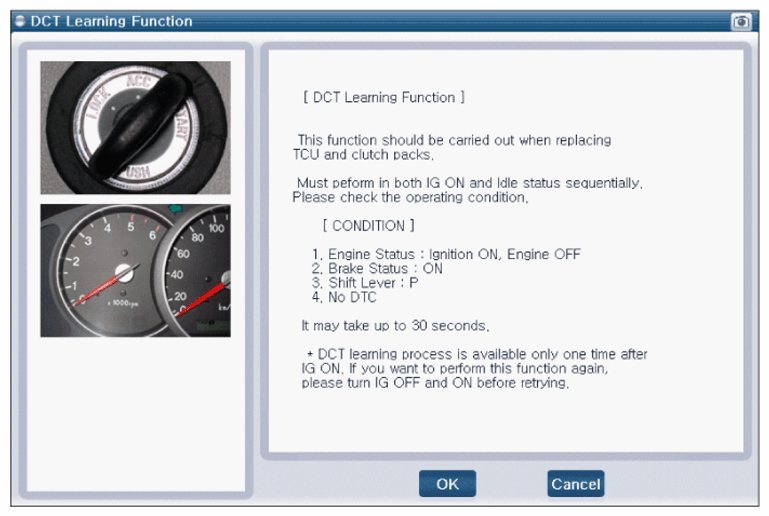

G12601796Courtesy of HYUNDAI MOTOR AMERICA

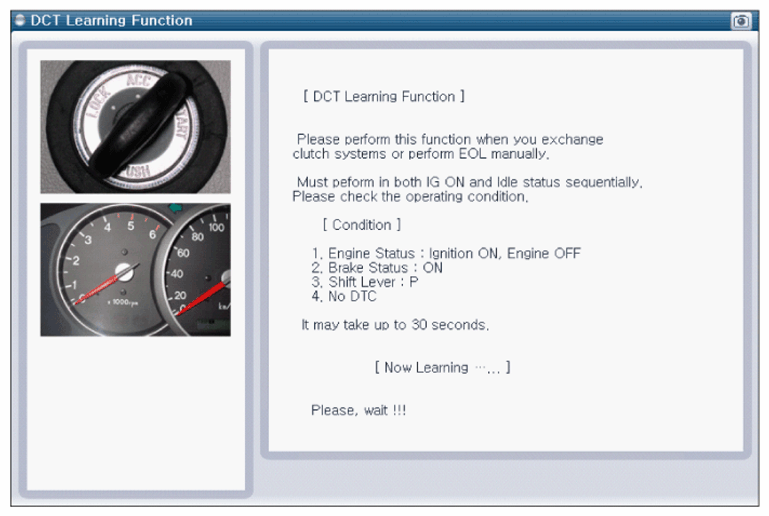

G12601797Courtesy of HYUNDAI MOTOR AMERICA

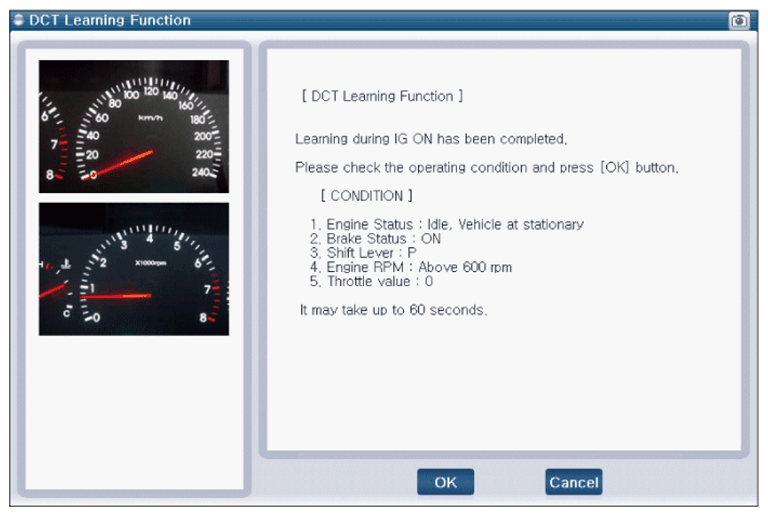

G12601798Courtesy of HYUNDAI MOTOR AMERICA

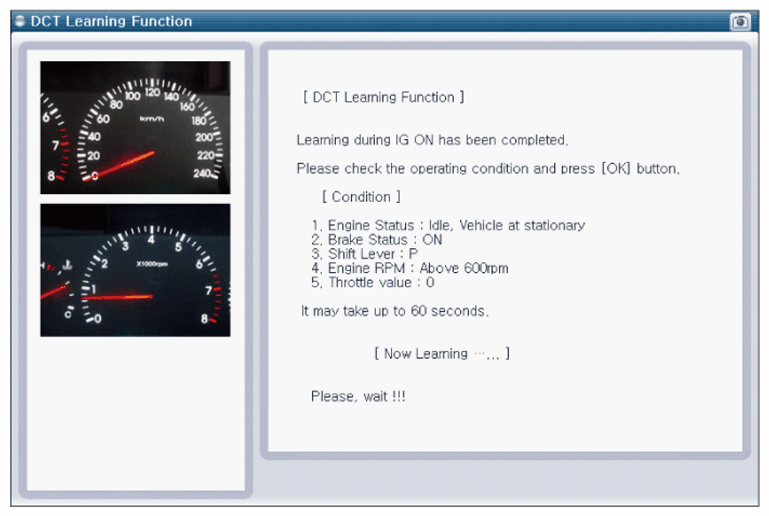

G12601799Courtesy of HYUNDAI MOTOR AMERICA

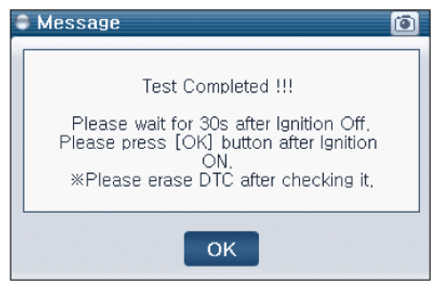

G12601800Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

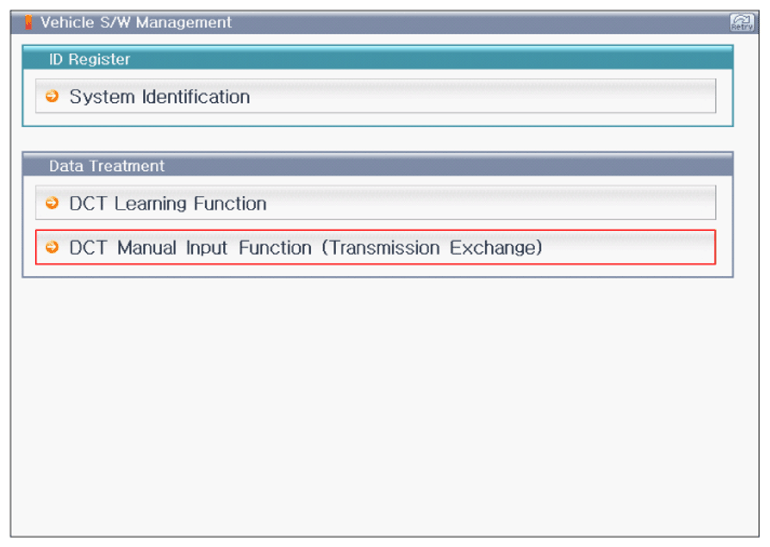

G12601801Courtesy of HYUNDAI MOTOR AMERICA

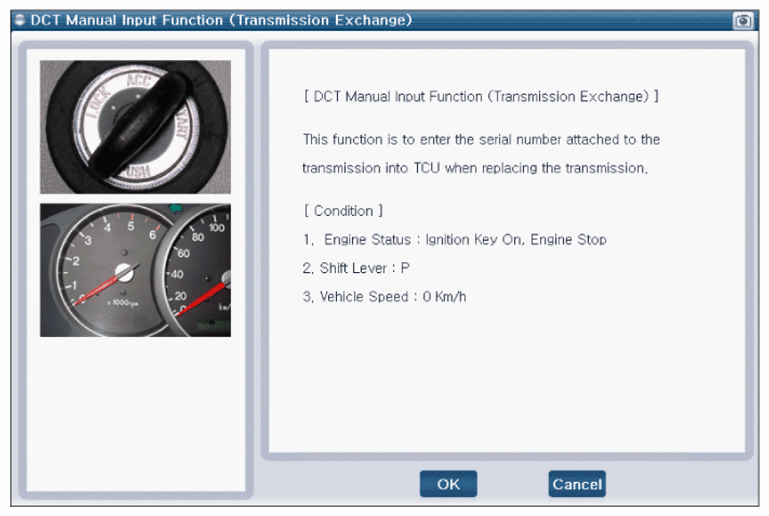

G12601802Courtesy of HYUNDAI MOTOR AMERICA
G12601803Courtesy of HYUNDAI MOTOR AMERICA

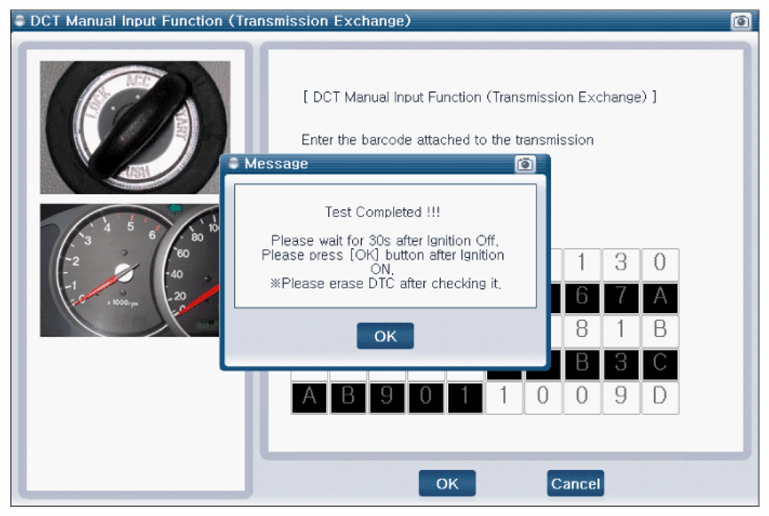

G12601804Courtesy of HYUNDAI MOTOR AMERICA
