Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601764Courtesy of HYUNDAI MOTOR AMERICA

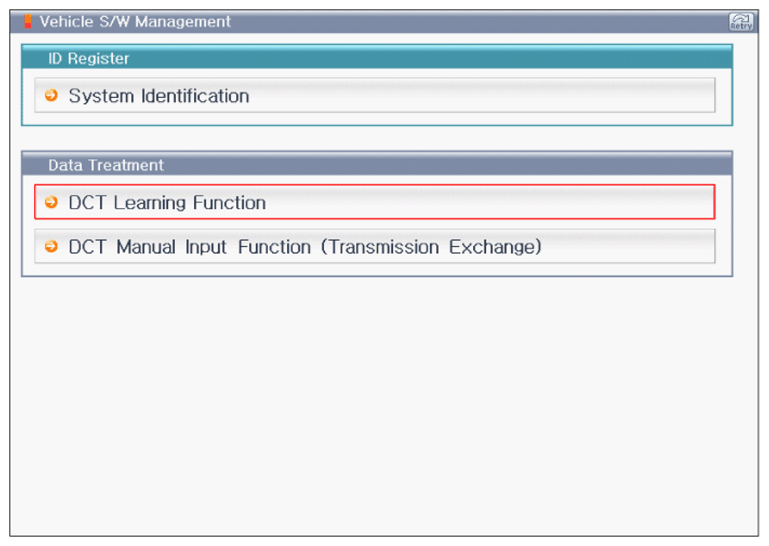

G12601765Courtesy of HYUNDAI MOTOR AMERICA

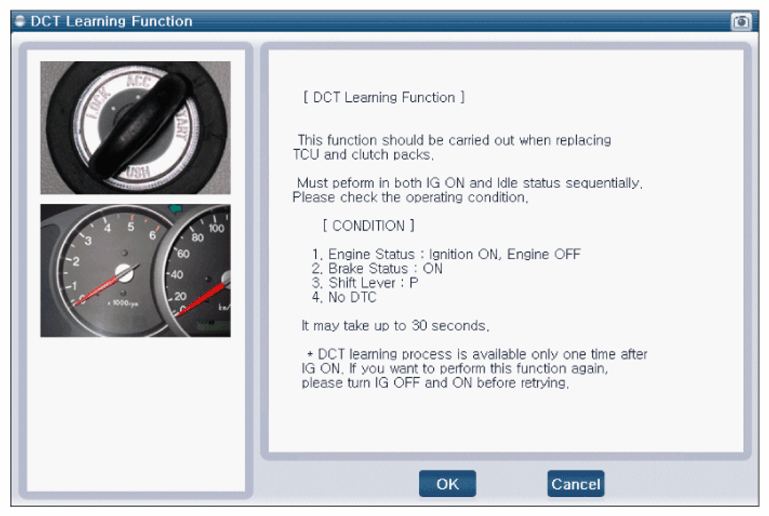

G12601766Courtesy of HYUNDAI MOTOR AMERICA

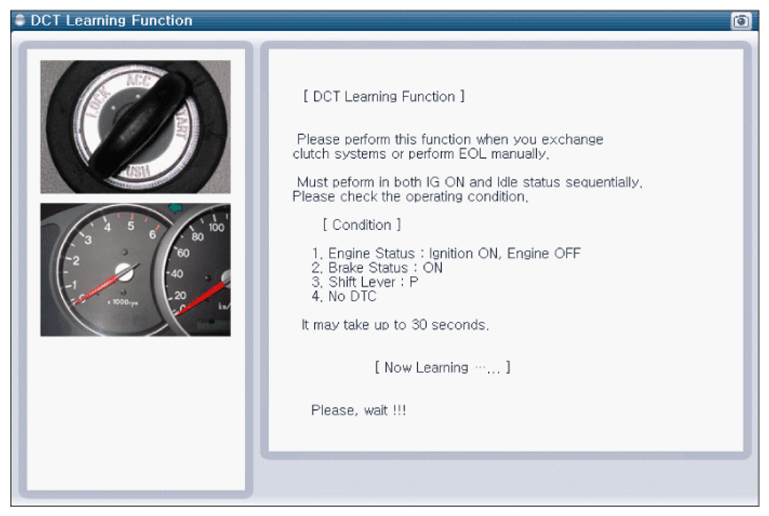

G12601767Courtesy of HYUNDAI MOTOR AMERICA

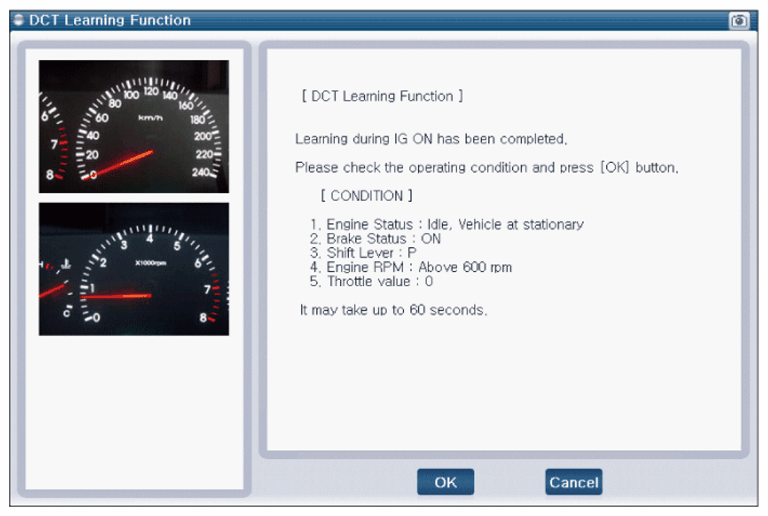

G12601768Courtesy of HYUNDAI MOTOR AMERICA

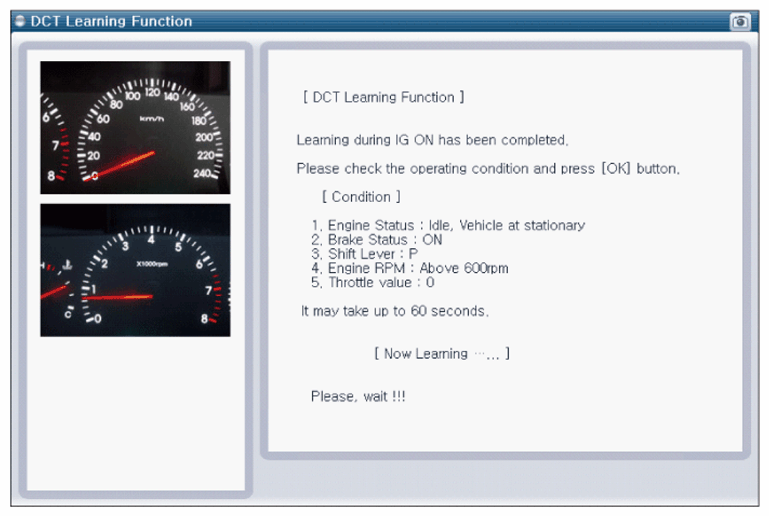

G12601769Courtesy of HYUNDAI MOTOR AMERICA

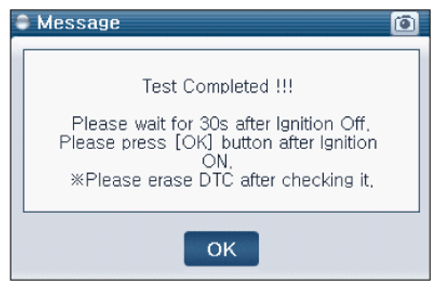

G12601770Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

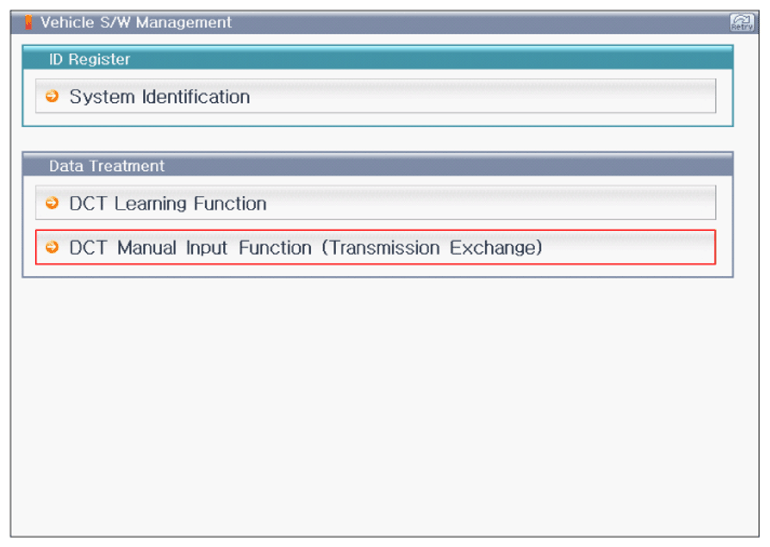

G12601771Courtesy of HYUNDAI MOTOR AMERICA

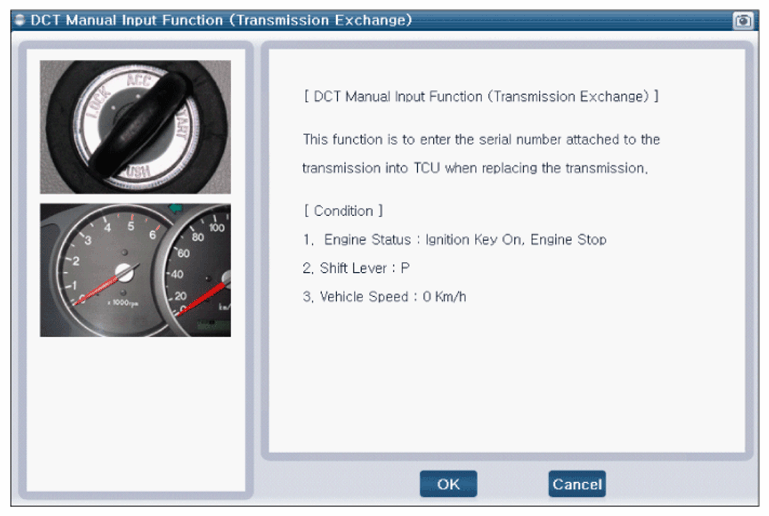

G12601772Courtesy of HYUNDAI MOTOR AMERICA
G12601773Courtesy of HYUNDAI MOTOR AMERICA

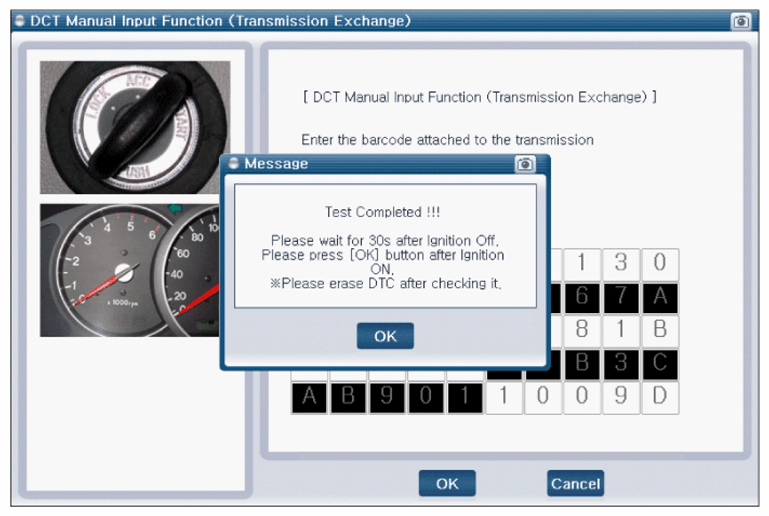

G12601774Courtesy of HYUNDAI MOTOR AMERICA
