Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures

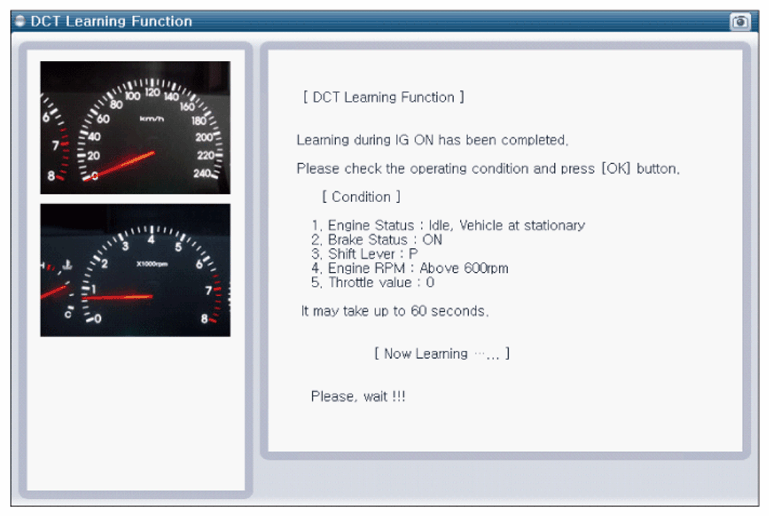

  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601734Courtesy of HYUNDAI MOTOR AMERICA

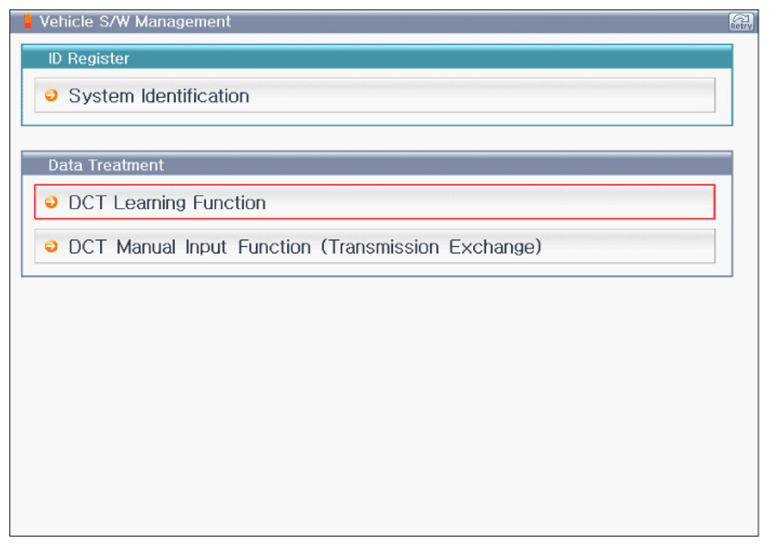

G12601735Courtesy of HYUNDAI MOTOR AMERICA

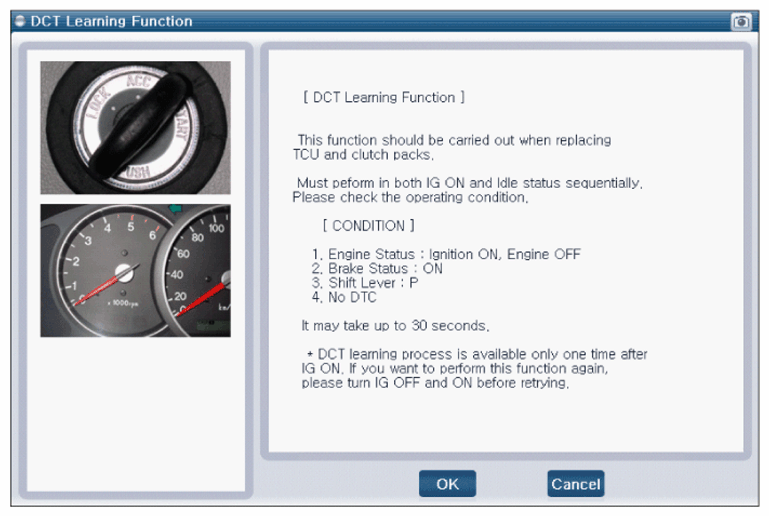

G12601736Courtesy of HYUNDAI MOTOR AMERICA

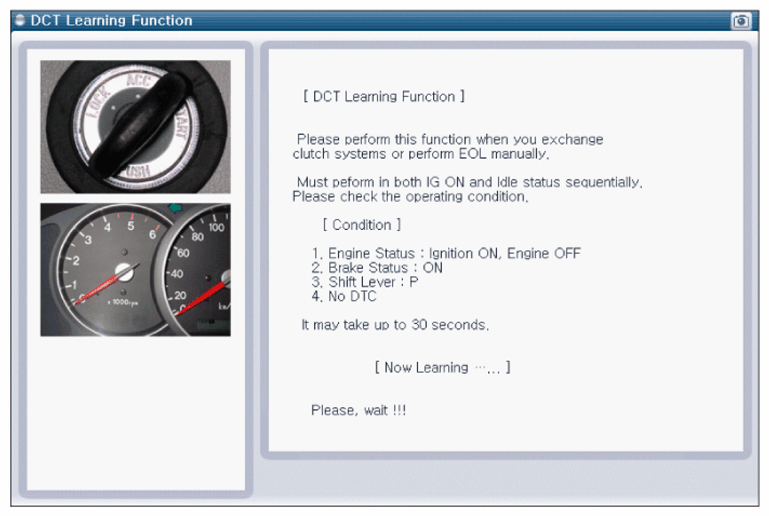

G12601737Courtesy of HYUNDAI MOTOR AMERICA

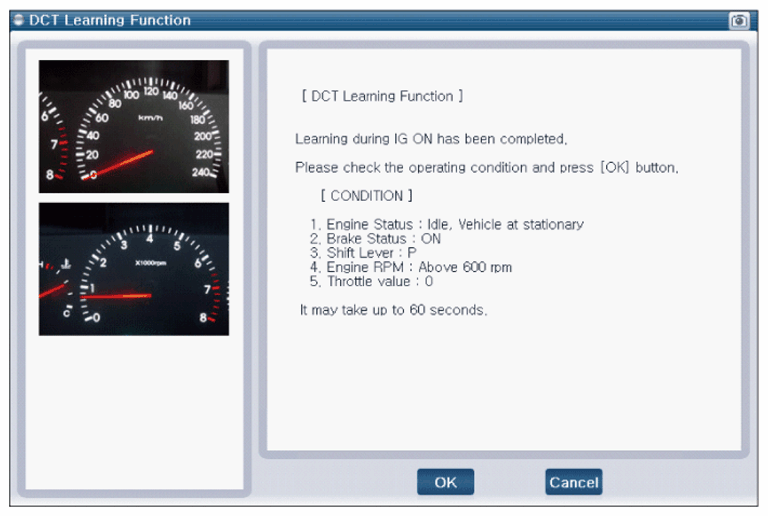

G12601738Courtesy of HYUNDAI MOTOR AMERICA
G12601739Courtesy of HYUNDAI MOTOR AMERICA

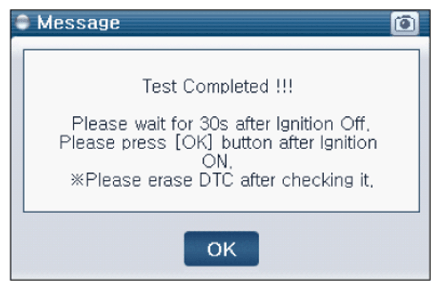

G12601740Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;

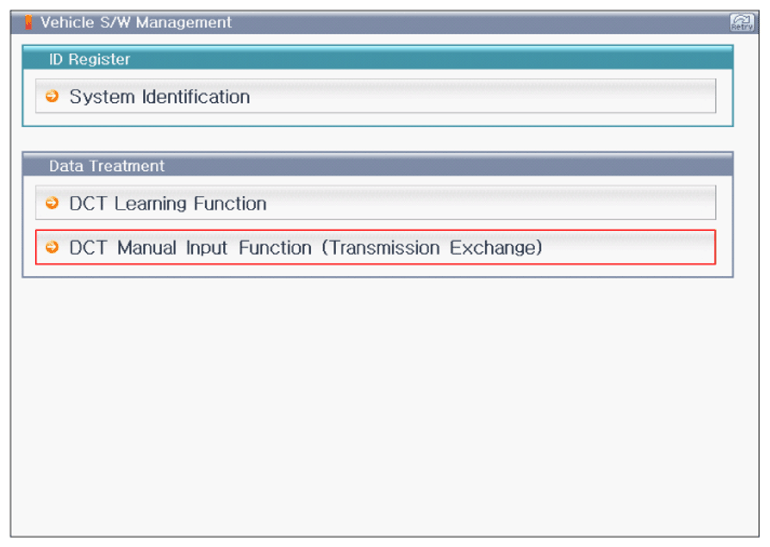

  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.
G12601741Courtesy of HYUNDAI MOTOR AMERICA

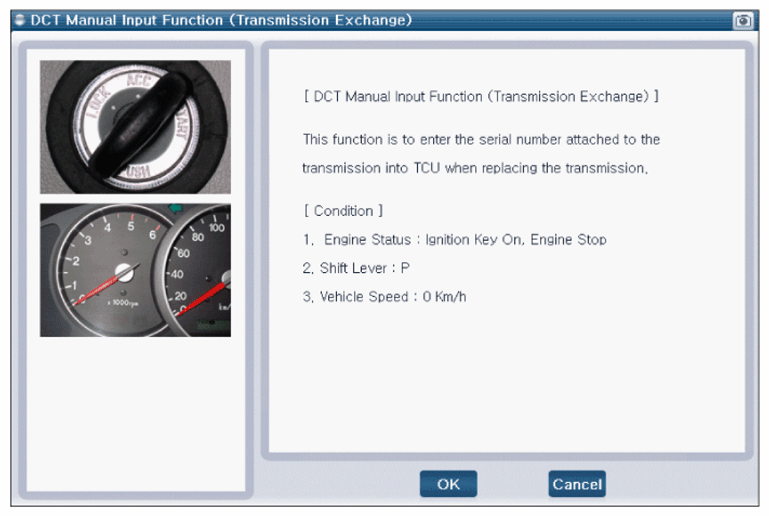

G12601742Courtesy of HYUNDAI MOTOR AMERICA
G12601743Courtesy of HYUNDAI MOTOR AMERICA

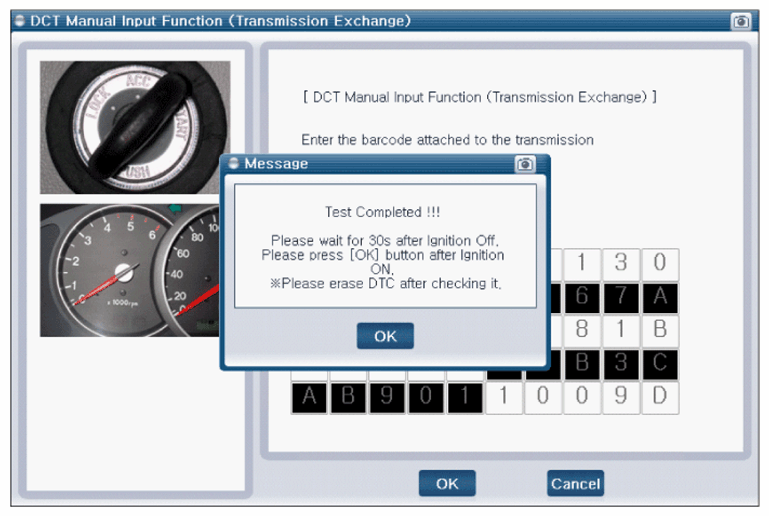

G12601744Courtesy of HYUNDAI MOTOR AMERICA
