Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12601509Courtesy of HYUNDAI MOTOR AMERICA

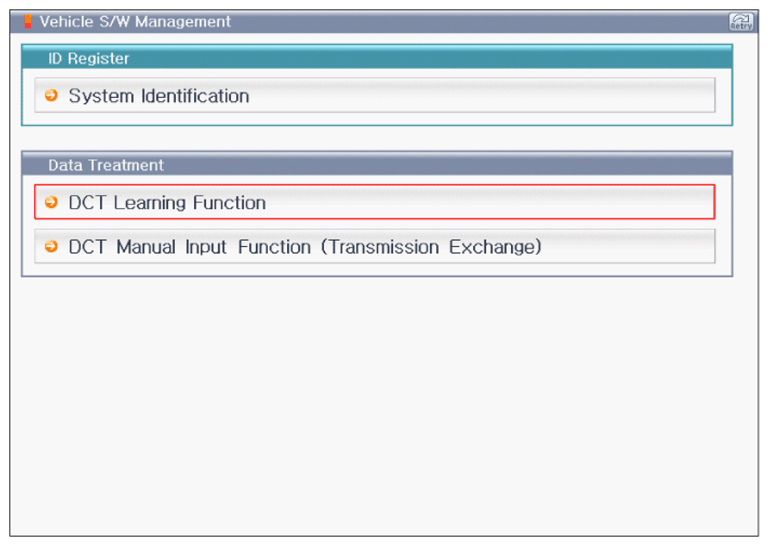

G12601510Courtesy of HYUNDAI MOTOR AMERICA

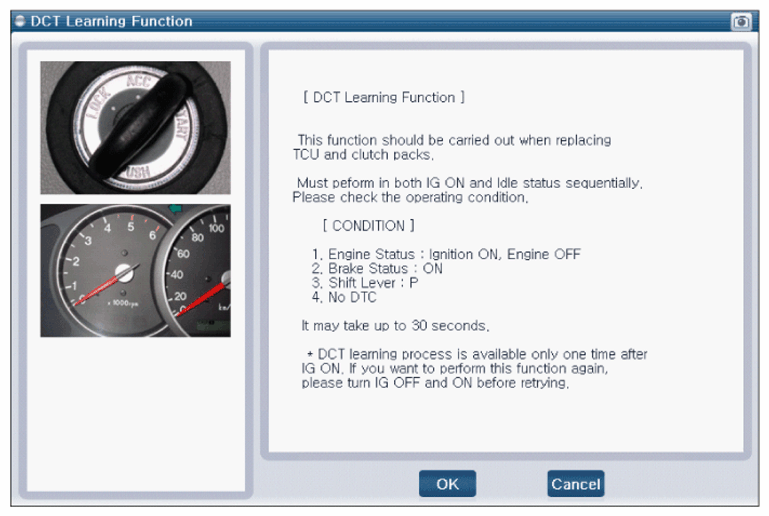

G12601511Courtesy of HYUNDAI MOTOR AMERICA

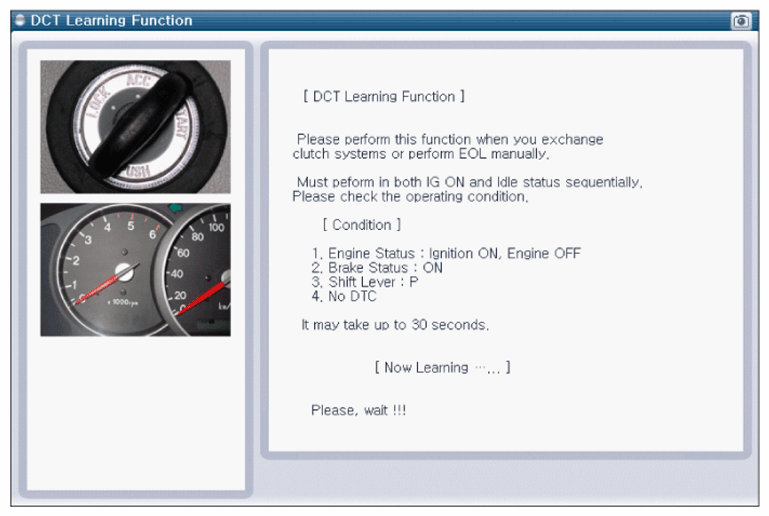

G12601512Courtesy of HYUNDAI MOTOR AMERICA

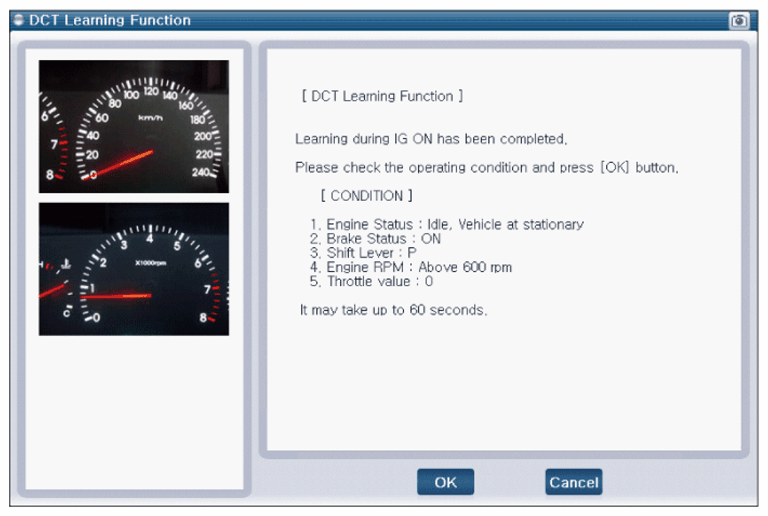

G12601513Courtesy of HYUNDAI MOTOR AMERICA

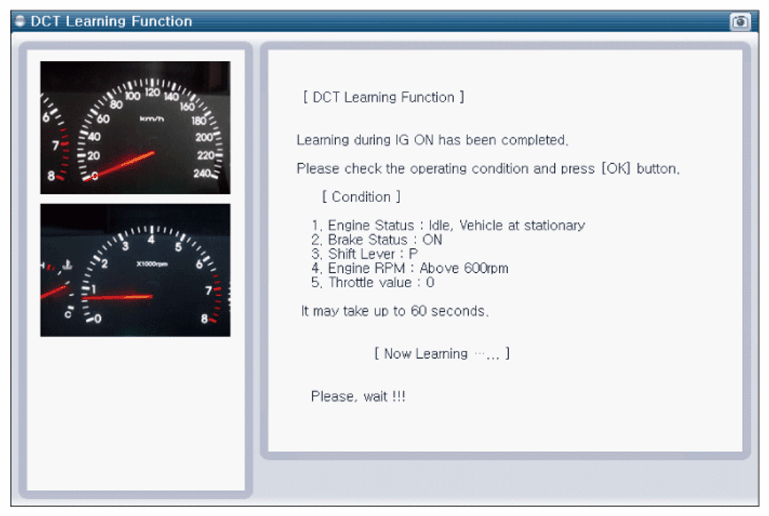

G12601514Courtesy of HYUNDAI MOTOR AMERICA

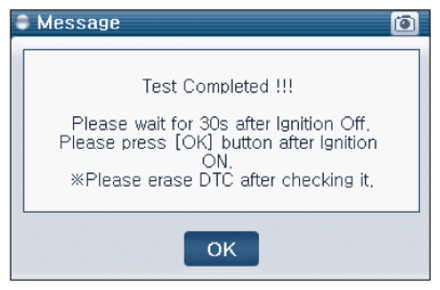

G12601515Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

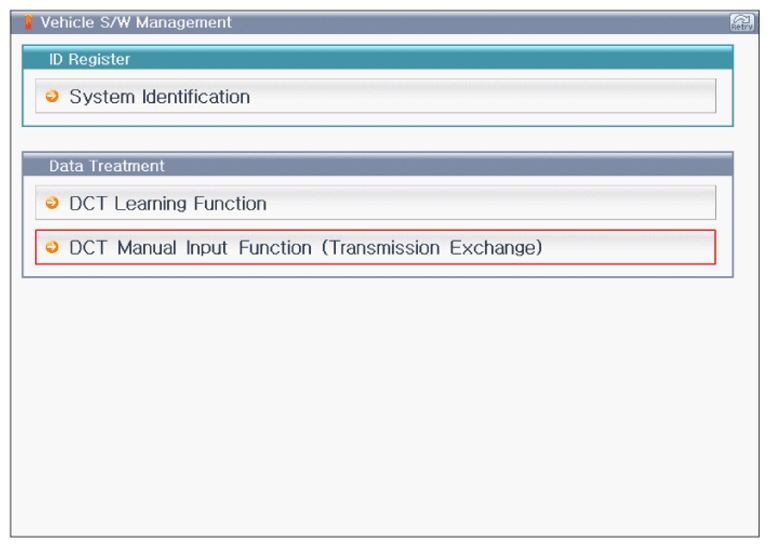

G12601516Courtesy of HYUNDAI MOTOR AMERICA

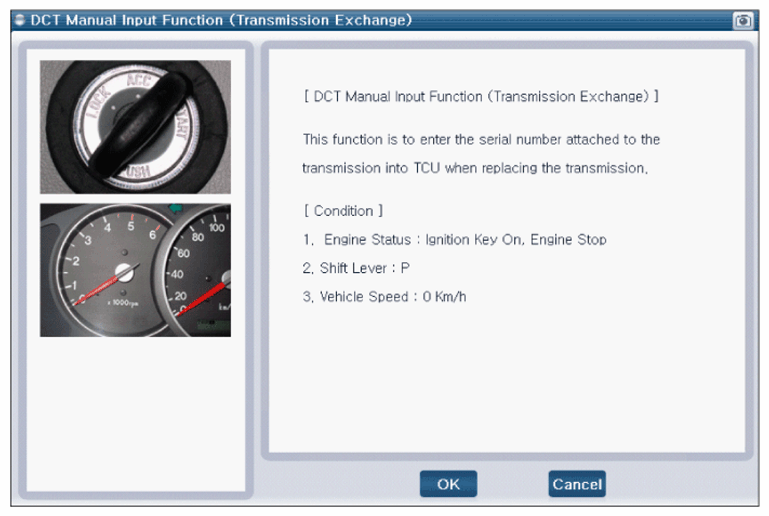

G12601517Courtesy of HYUNDAI MOTOR AMERICA
G12601518Courtesy of HYUNDAI MOTOR AMERICA

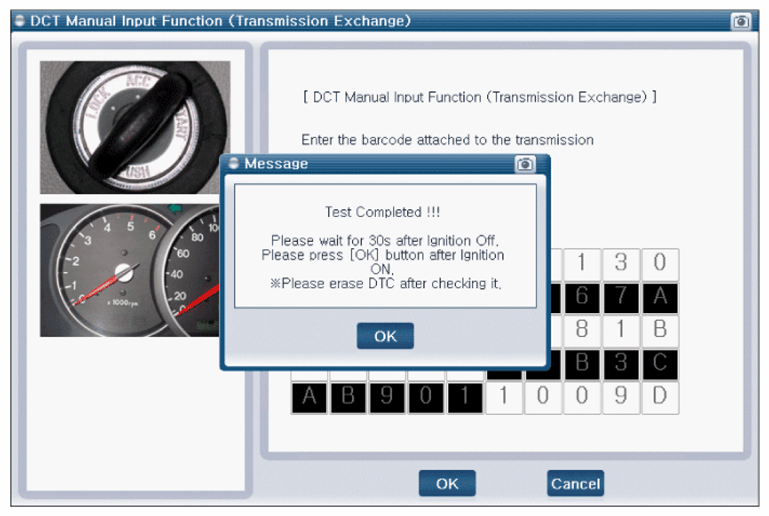

G12601519Courtesy of HYUNDAI MOTOR AMERICA
