Monitor GDS Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to Data Link Connector (DLC).
- Engine "ON" and Monitor "Select Lever (from TGS CAN Line)", "Select Lever (from Inhibitor Switch)" and "Current Gear" parameters in A/T system "Current Data" with GDS.
- Move the shift lever to check the "Current Data" output value.

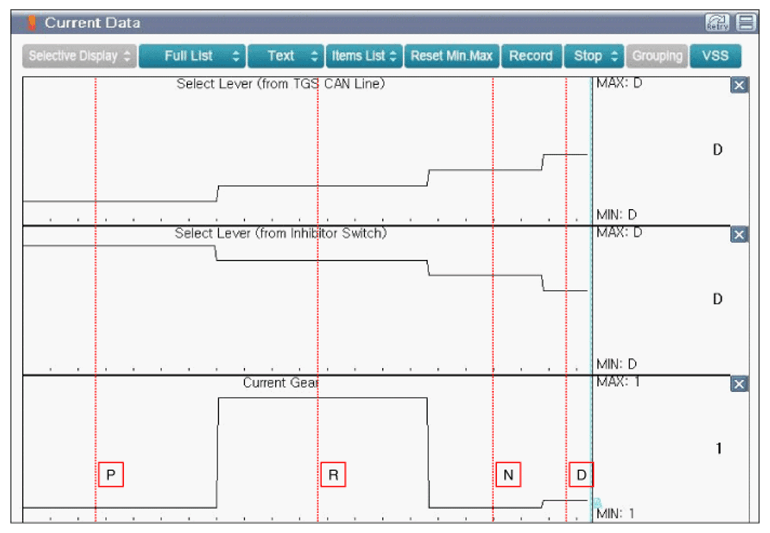

Specification: Refer to image Below
- Is the value within specification?
YES
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
NOTE: Most of fault that happen about inhibitor switch, result from faulty shift cable adjustment or incorrect location of manual control lever and inhibitor switch. So, when DTC which related Inhibitor switch or engine start defectiveness at "P" range happen, After check the shift cable adjustment or location of manual control lever and inhibitor switch, repair or replace as necessary.
