Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. In case of replacing TCM or Clutch pack perform following procedures
G12601412Courtesy of HYUNDAI MOTOR AMERICA

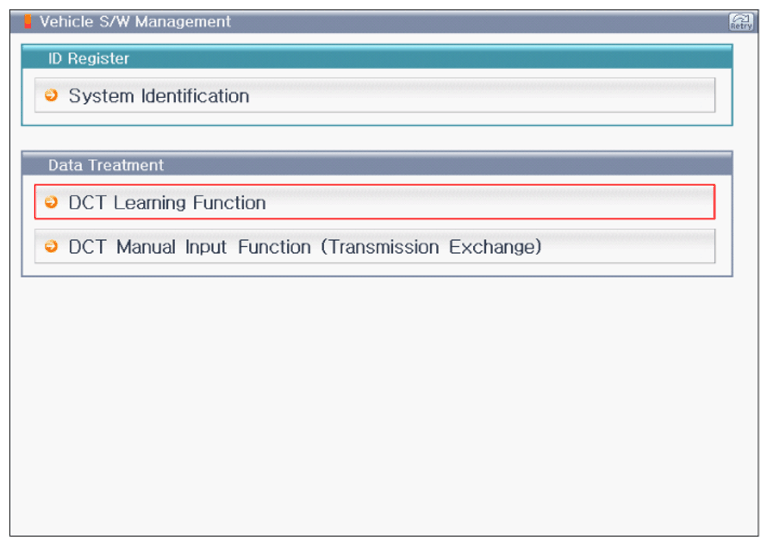

G12601413Courtesy of HYUNDAI MOTOR AMERICA

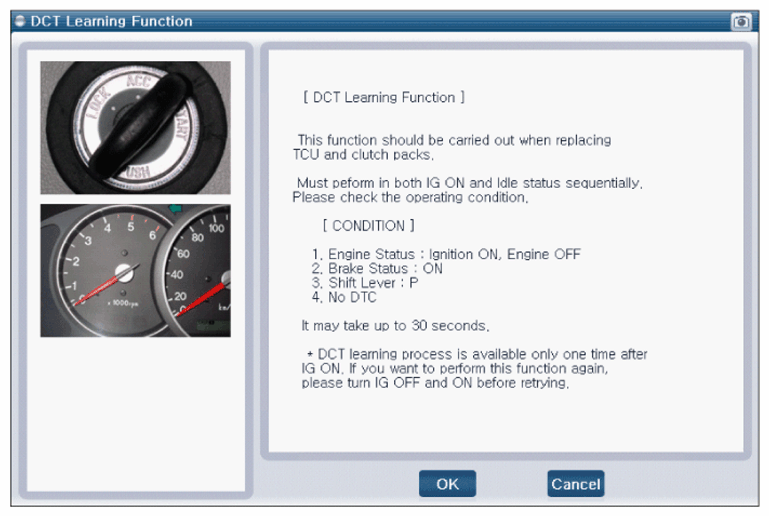

G12601414Courtesy of HYUNDAI MOTOR AMERICA

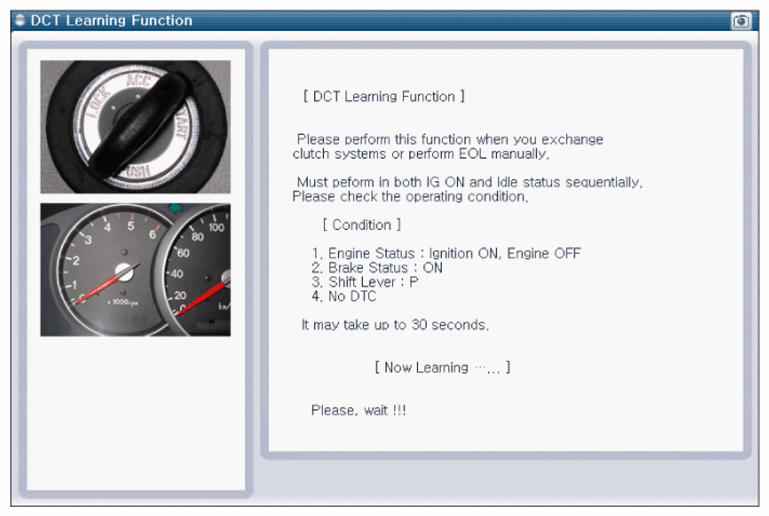

G12601415Courtesy of HYUNDAI MOTOR AMERICA

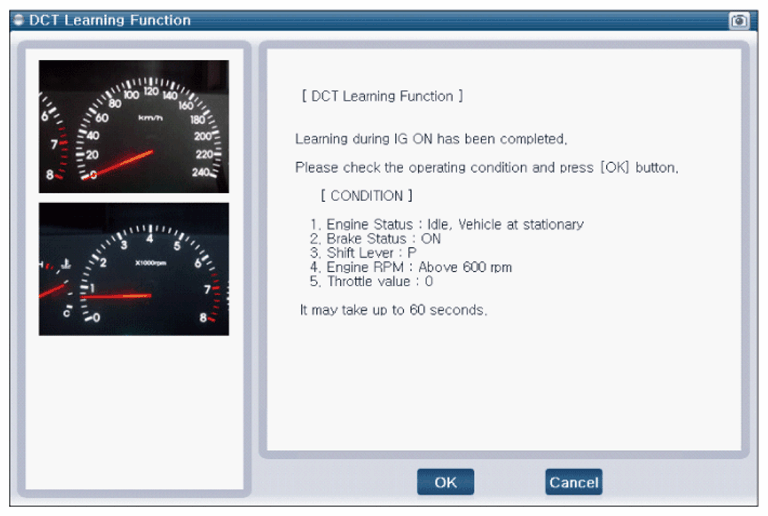

G12601416Courtesy of HYUNDAI MOTOR AMERICA

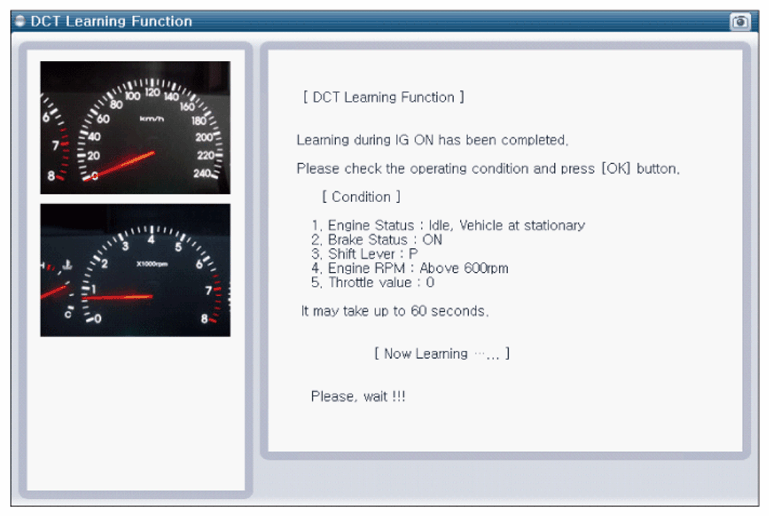

G12601417Courtesy of HYUNDAI MOTOR AMERICA

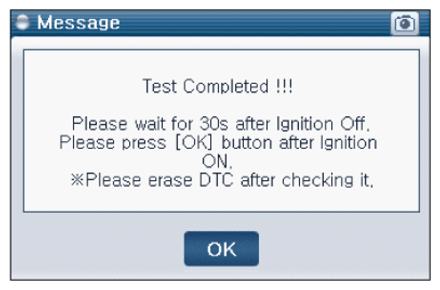

G12601418Courtesy of HYUNDAI MOTOR AMERICA
