Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. In case of replacing TCM or Clutch pack perform following procedures
G12601398Courtesy of HYUNDAI MOTOR AMERICA

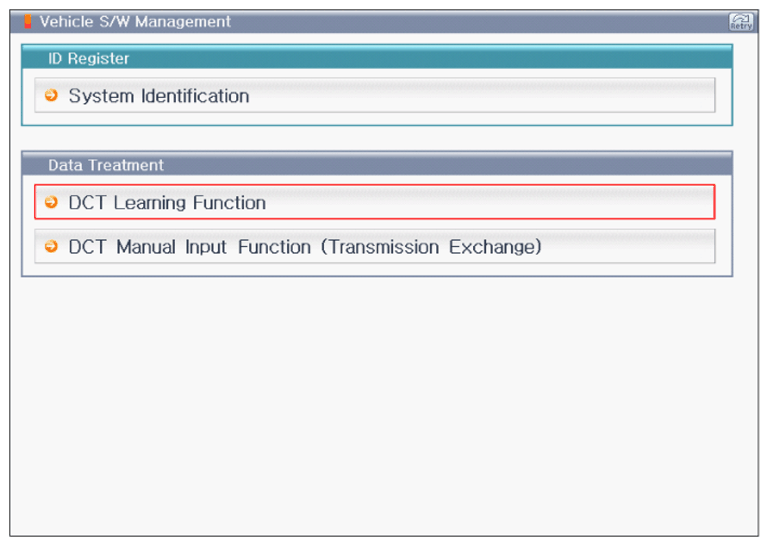

G12601399Courtesy of HYUNDAI MOTOR AMERICA

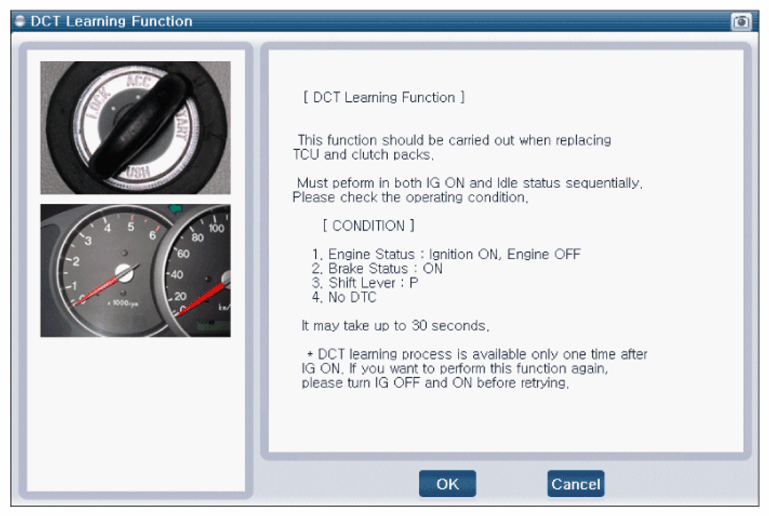

G12601400Courtesy of HYUNDAI MOTOR AMERICA

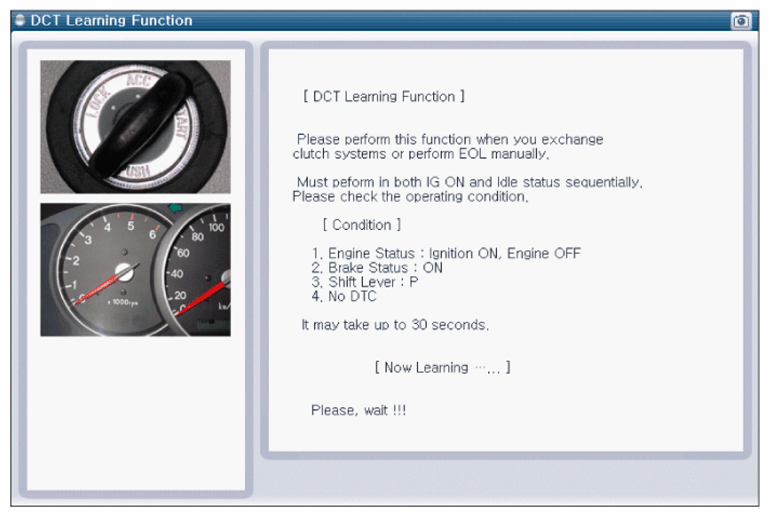

G12601401Courtesy of HYUNDAI MOTOR AMERICA

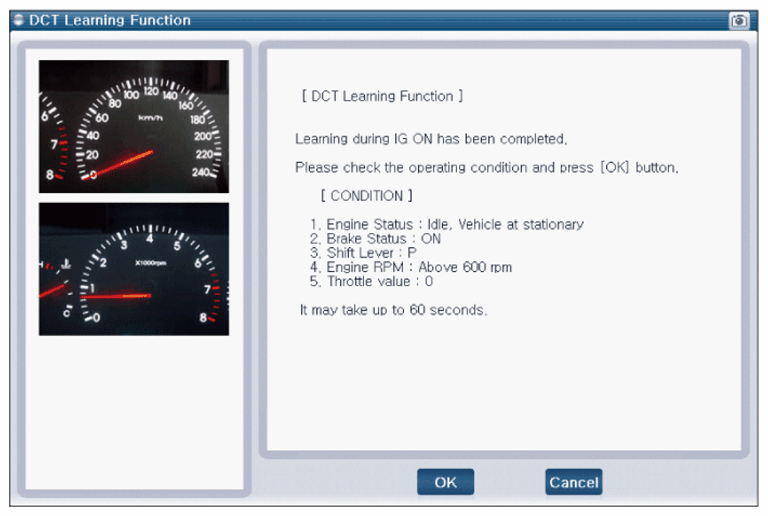

G12601402Courtesy of HYUNDAI MOTOR AMERICA

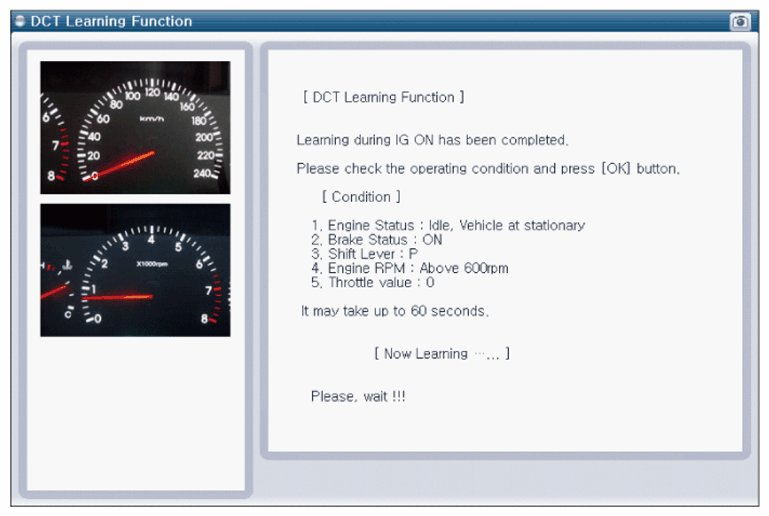

G12601403Courtesy of HYUNDAI MOTOR AMERICA

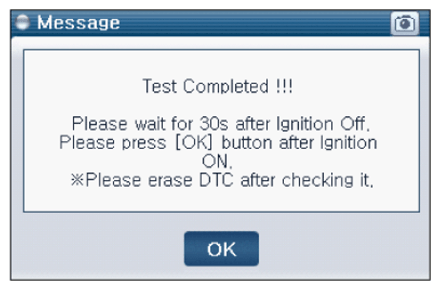

G12601404Courtesy of HYUNDAI MOTOR AMERICA
