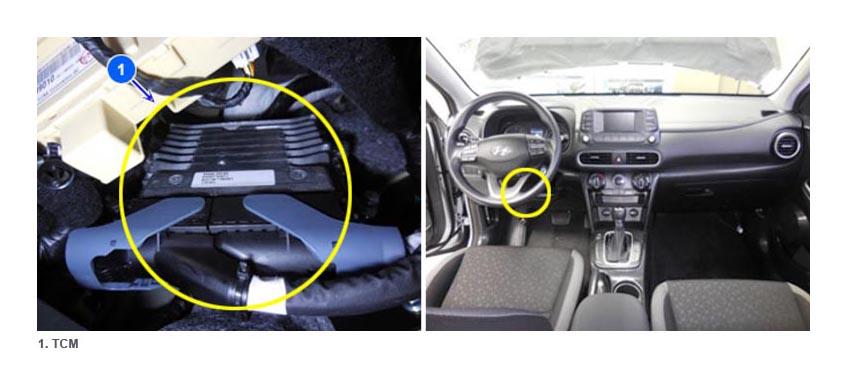

Component Location: TCM

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G12601384Courtesy of HYUNDAI MOTOR AMERICA

The TCM randomly monitors memory checksum by performing a self-test. These tests are implemented to verify that all of the vehicle software operational calculations are operating properly. If the test fails due to incorrect checksum, the TCM determines there is a checksum value error.
