Shift Motor
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

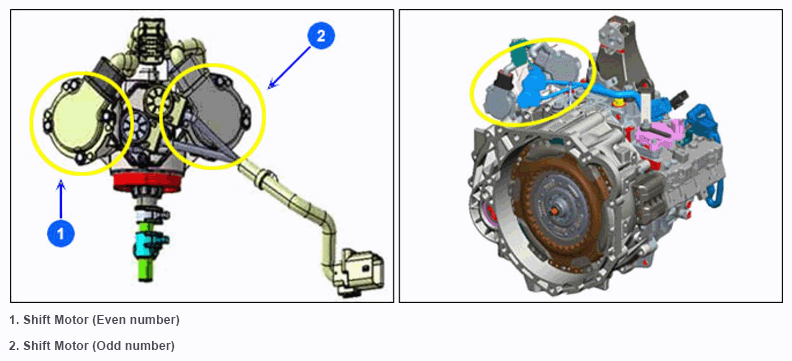

The Dual Clutch Transmission (DCT) control system measures data required for identifying the state of control target and computes the appropriate compensation value if adjustment is necessary. The actuator is controlled according to the computed compensation value to obtain desired output. The gear actuator comprises the shift motor and select solenoid. Gear actuator shift motor and select solenoid use signals from TCM to control the gear.
