Shift Lever

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

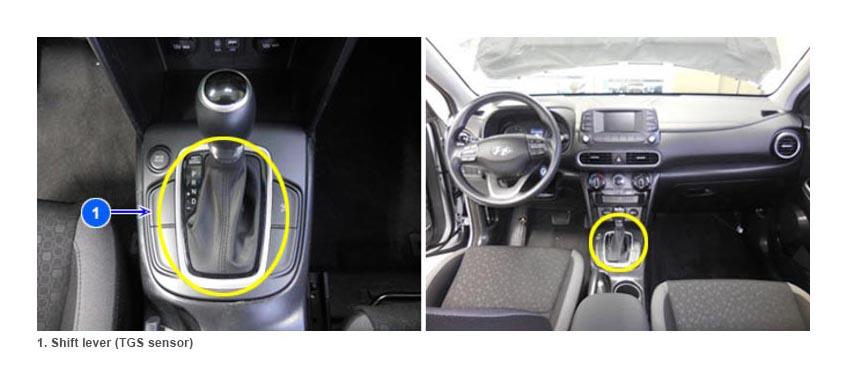

G12601390Courtesy of HYUNDAI MOTOR AMERICA

The TGS sensor is installed underside of Shift lever. TGS sensor sends the shift lever position information to the TCM. The TCM compares TGS sensor signal with Inhibitor switch signal and judges the shift lever position. Inhibitor switch signal has high priority over TGS sensor signal.
