Component Location: Battery

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

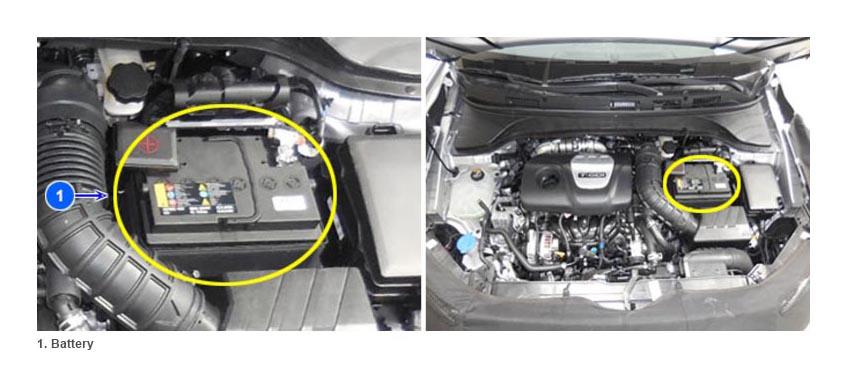

G12601393Courtesy of HYUNDAI MOTOR AMERICA

The TCM should be supplied suitable power from Battery in order to correct operation of DCT system. TCM monitor input voltage and system shut down If input voltage is out of available range.
