Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 47 (Airbag System Diagnosis (4 Of 4)) >> DTC B1737-00: Anchor Pretensioner Front-Passenger Resistance Circuit Short To Battery >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

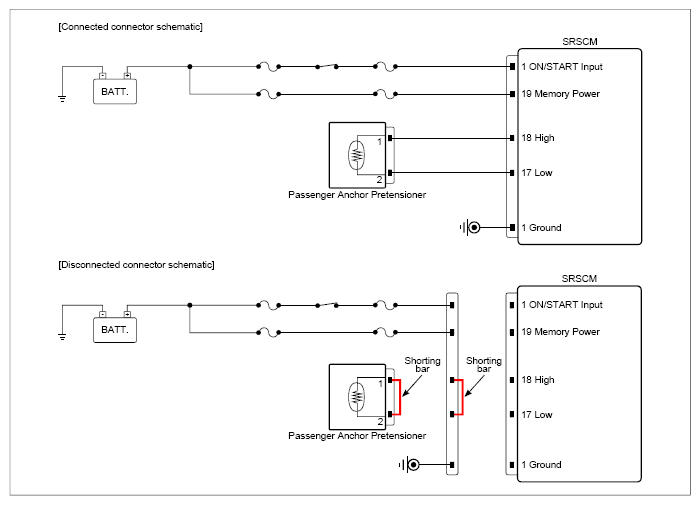

G13483977Courtesy of KIA MOTORS AMERICA, INC.

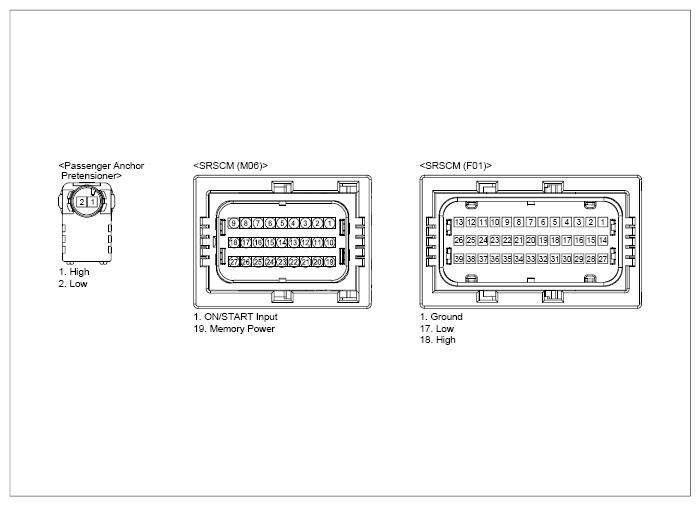

G13483978Courtesy of KIA MOTORS AMERICA, INC.
