Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 47 (Airbag System Diagnosis (4 Of 4)) >> DTC B1734-00: Anchor Pretensioner Front-Passenger Resistance Too High >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

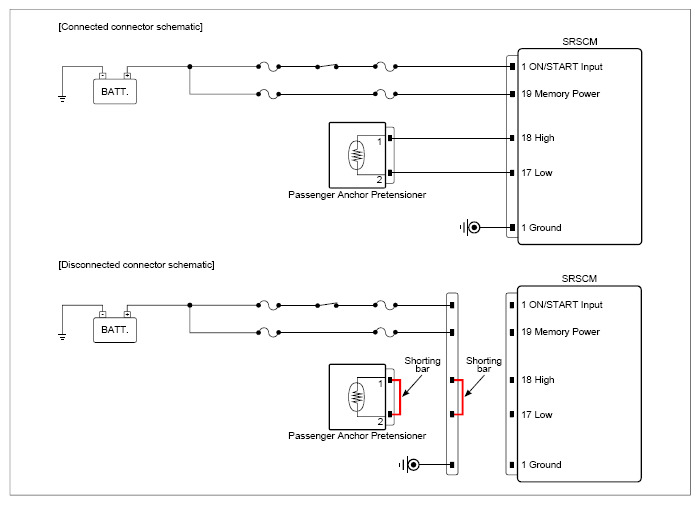

G13483959Courtesy of KIA MOTORS AMERICA, INC.

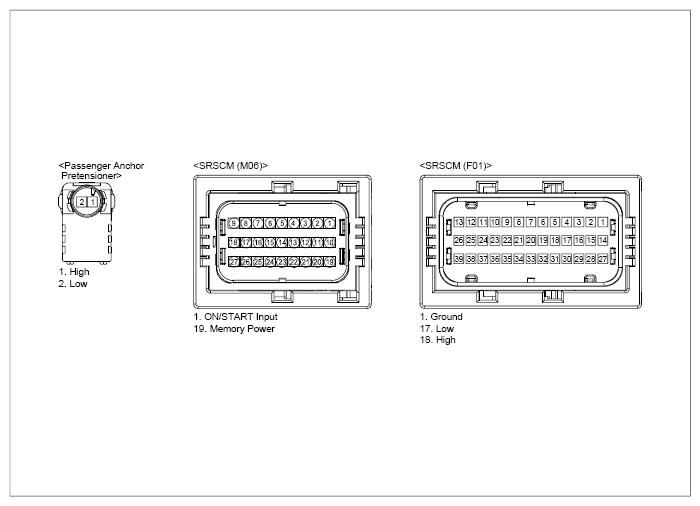

G13483960Courtesy of KIA MOTORS AMERICA, INC.
