Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

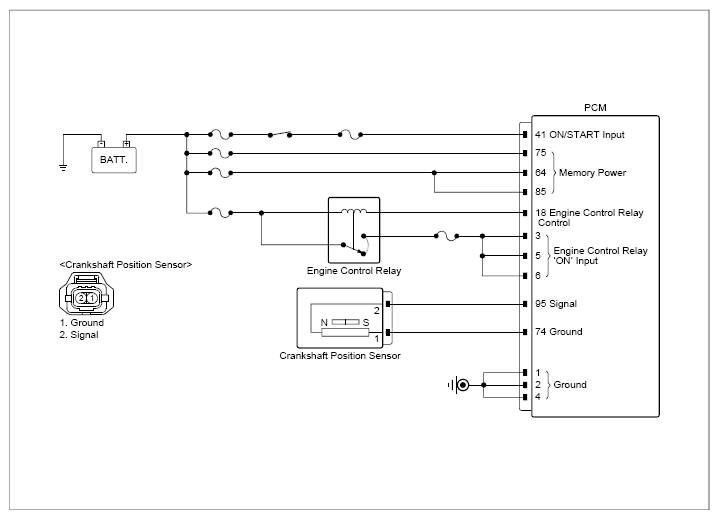

Courtesy of KIA MOTORS AMERICA, INC.

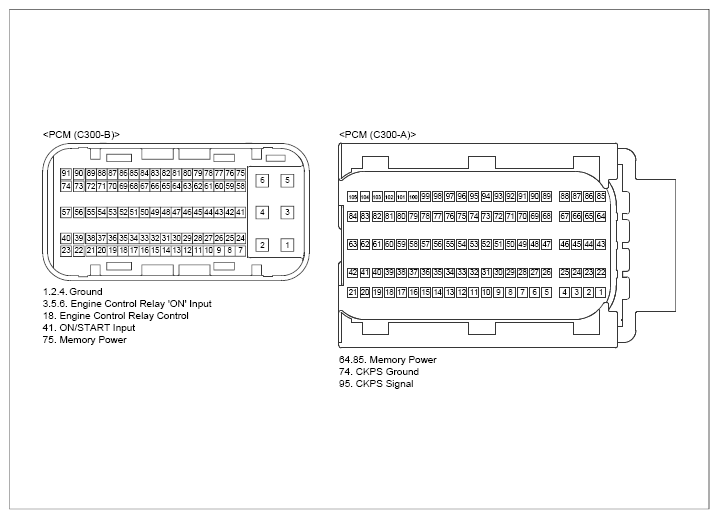

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" and disconnect CKPS connector. Ignition "ON".	CKPS connector	1 (ground)	Chassis ground	-	Approx. 1.87V
	CKPS connector	2 (signal)	Chassis ground	-	Approx. 1.88V
Ignition "OFF". Disconnect the all electrical connector(s) from the concerned component.	CKPS connector	1 (ground)	ECM/PCM connector	74 (ground)	Approx. below 1Ω
	CKPS connector	2 (signal)	ECM/PCM connector	95 (signal)	Approx. below 1Ω
	CKPS connector	2 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
