Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

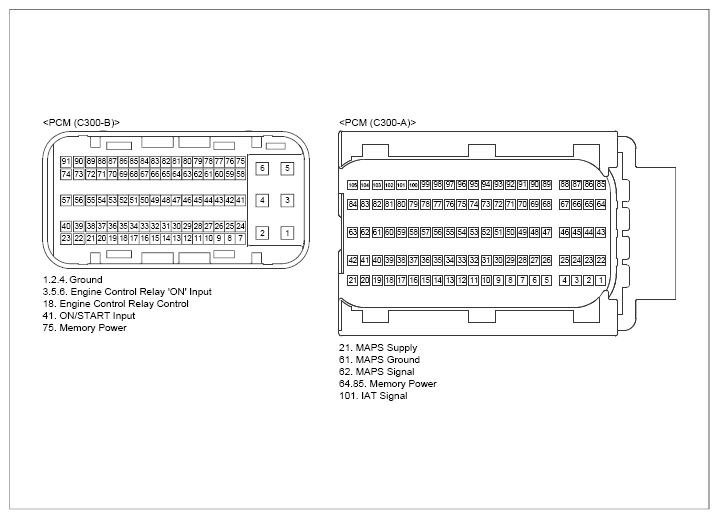

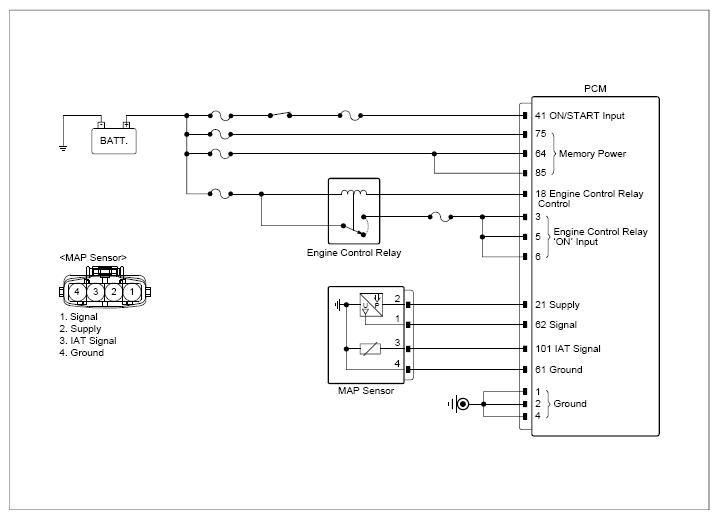

G13506273Courtesy of KIA MOTORS AMERICA, INC.
G13506274Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect MAPS connector.
  2. Ignition "ON".
 MAPS connector 2 (power) Chassis ground - Approx. 5V
  1. Ignition "OFF" and disconnect MAPS connector.
  2. Ignition "ON".
 MAPS connector 1 (signal) Chassis ground - 0V
  1. Ignition "OFF" and disconnect MAPS connector and ECM/PCM connector.
 MAPS connector 1 (signal) ECM/PCM connector 62 (signal) Approx. below 1Ω

Good

No Good
