Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

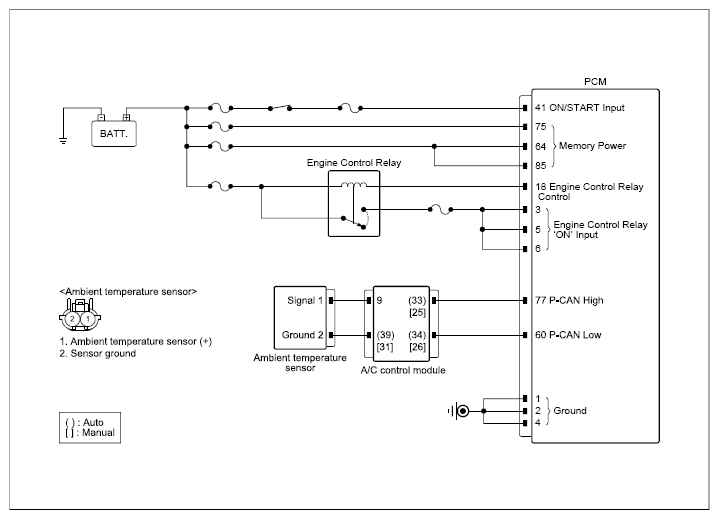

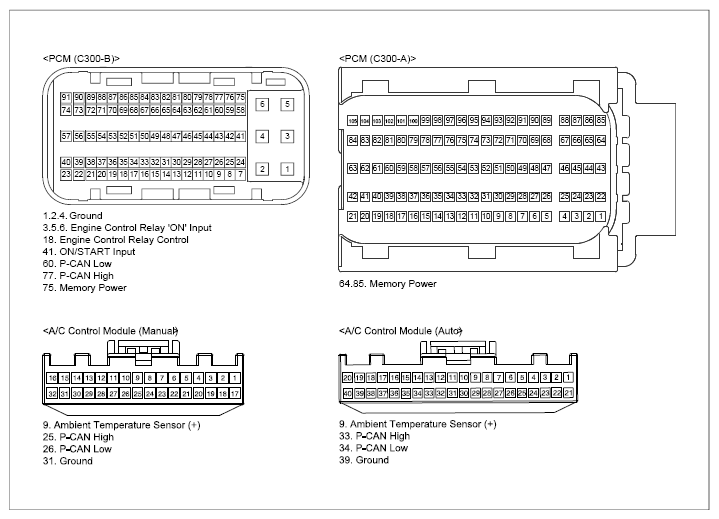

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
AATS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
AATS connector | 1 (signal) | Chassis ground | - | Approx. below 1Ω |
|
A/C Control module connector (auto) | 33 (P-CAN high) | Chassis ground | - | Fig.1 |
| A/C Control module connector (auto) | 34 (P-CAN low) | Chassis ground | - | ||
| A/C Control module connector (manual) | 25 (P-CAN high) | Chassis ground | - | ||
| A/C Control module connector (manual) | 26 (P-CAN low) | Chassis ground | - | ||
|
ECM/PCM connector | 77 (P-CAN high) | A/C Control module connector (auto) | 33 (P-CAN high) | Approx. below 1Ω |
| ECM/PCM connector | 60 (P-CAN low) | A/C Control module connector (auto) | 34 (P-CAN low) | Approx. below 1Ω | |
| ECM/PCM connector | 77 (P-CAN high) | A/C Control module connector (manual) | 25 (P-CAN high) | Approx. below 1Ω | |
| ECM/PCM connector | 60 (P-CAN low) | A/C Control module connector (manual) | 26 (P-CAN low) | Approx. below 1Ω | |
| ECM/PCM (component side) | 77 (P-CAN high) | ECM/PCM (component side) | 60 (P-CAN low) | Approx. below 1Ω | |
| ICU (component side) | 9 (P-CAN high) | ICU (component side) | 8 (P-CAN low) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
