Component Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

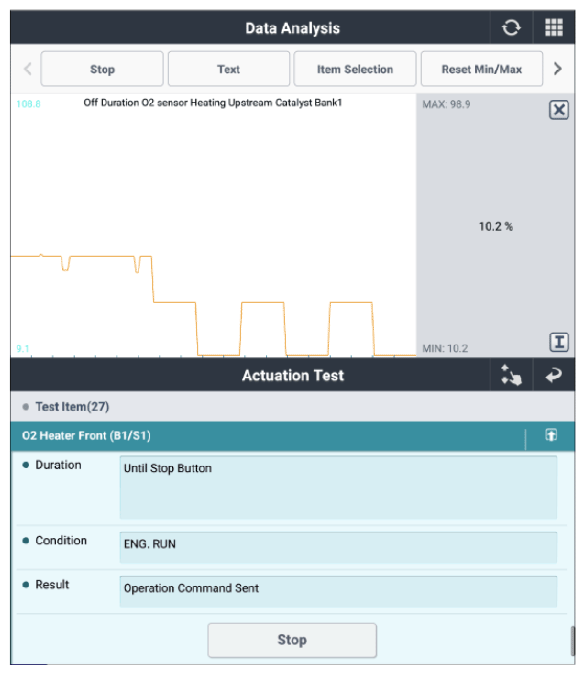

Fig.1 |
Good
- Go to "Inspect HO2S (Bank1, Sensor1) Heater" procedure below.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
| Inspect HO2S (Bank1, Sensor1) Heater | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
HO2S (Bank1, Sensor1) heater (component side) | 2 (power) | HO2S (Bank1, Sensor1) heater (component side) | 5 (heater) | Approx. 2.4 at 4.0Ω (20°C (68°F)) |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (Bank1, Sensor1) and go to "VERIFICATION OF REPAIR " procedure.
