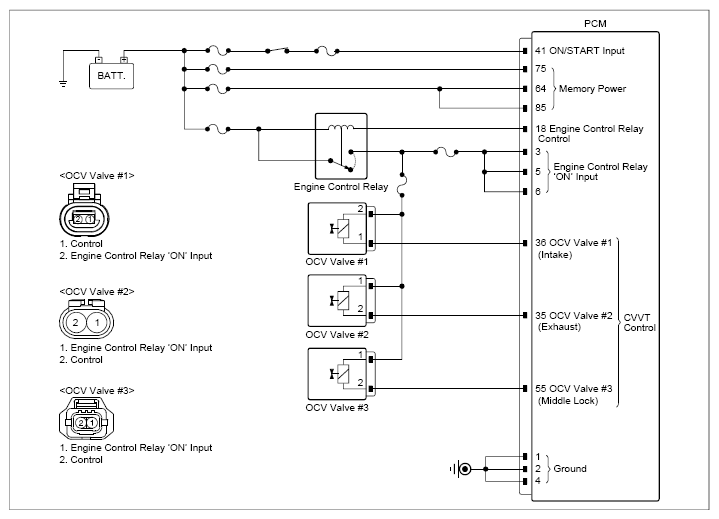

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

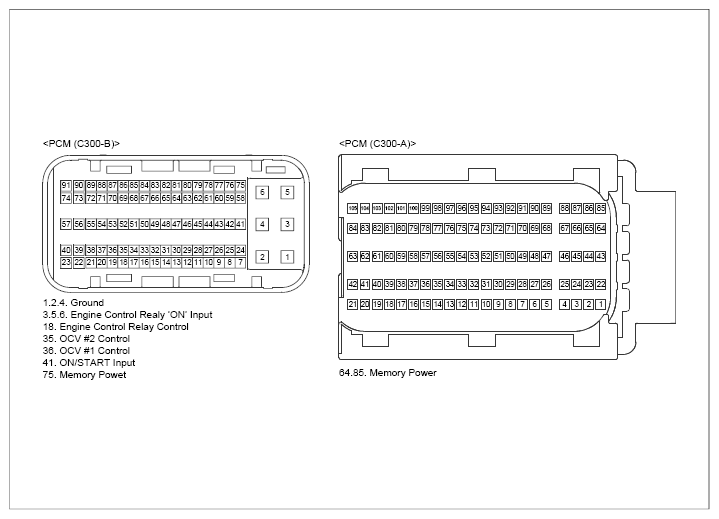

OCV valve #1 connector | 1 (control) | ECM/PCM connector | 36 (control) | Approx. below 1Ω |
| OCV valve #1 connector | 2 (power) | Chassis ground | - | ∞ (infinity)Ω | |
| OCV valve #1 connector | 1 (control) | Chassis ground | - | ∞ (infinity)Ω | |
|
OCV valve #1 connector | 2 (power) | Chassis ground | - | B+ |
| OCV valve #1 connector | 1 (control) | Chassis ground | - | Approx. 1.4V | |
| OCV valve #3 connector | 1 (power) | Chassis ground | - | B+ | |
| OCV valve #3 connector | 2 (control) | Chassis ground | - | Approx. 2.5V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
