Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

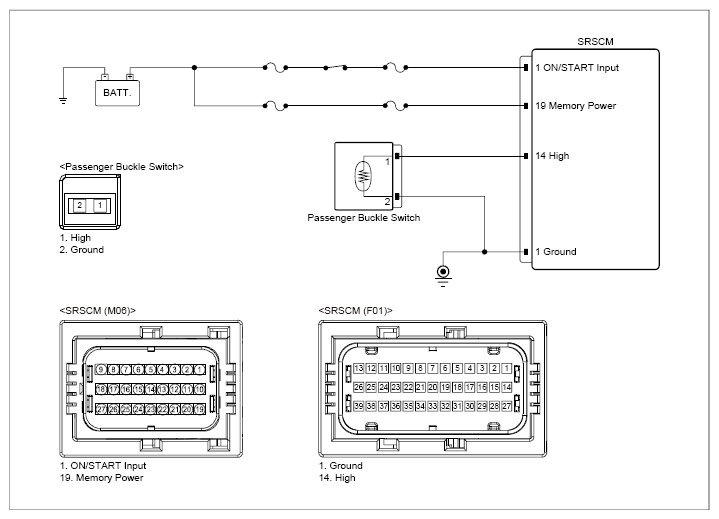

G13483873

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery (-) cable and wait at least for five minutes. Disconnect the electrical connector(s) from the concerned component.	PBS connector	2 (ground)	Chassis ground	-	Approx. below 1Ω
	PBS connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω
	PBS connector	1 (signal)	SRSCM connector	14 (signal)	Approx. below 1Ω
Ignition "ON".	PBS connector	1 (signal)	Chassis ground	-	Fig.1

G13483874

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure.
