Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Body Sensor Reset" in "Vehicle S/W management".	Fig.1 to 6

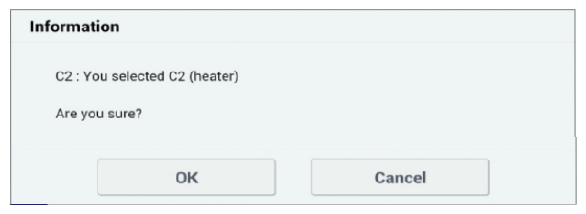

Courtesy of KIA MOTORS AMERICA, INC.

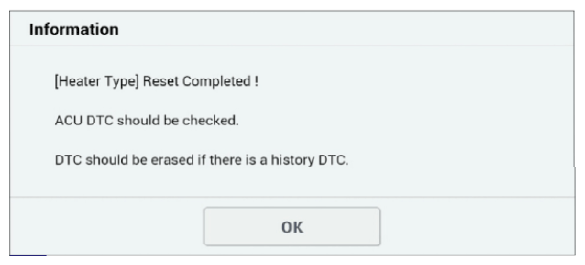

Courtesy of KIA MOTORS AMERICA, INC.

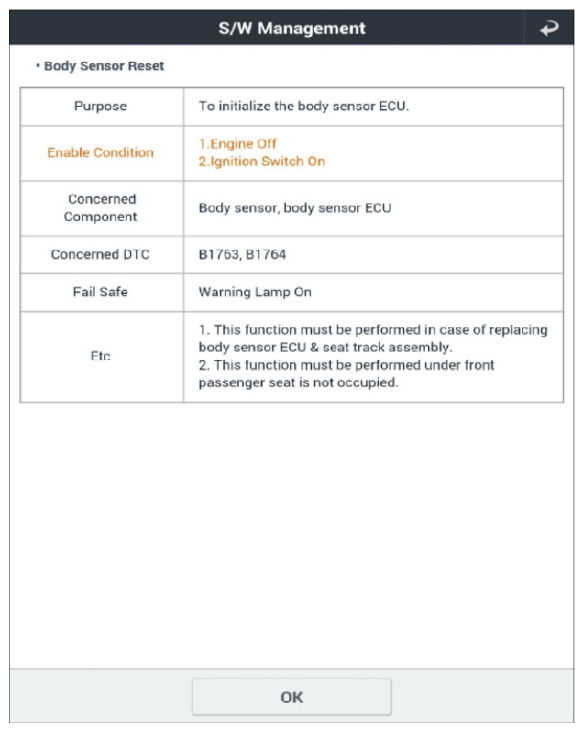

Courtesy of KIA MOTORS AMERICA, INC.

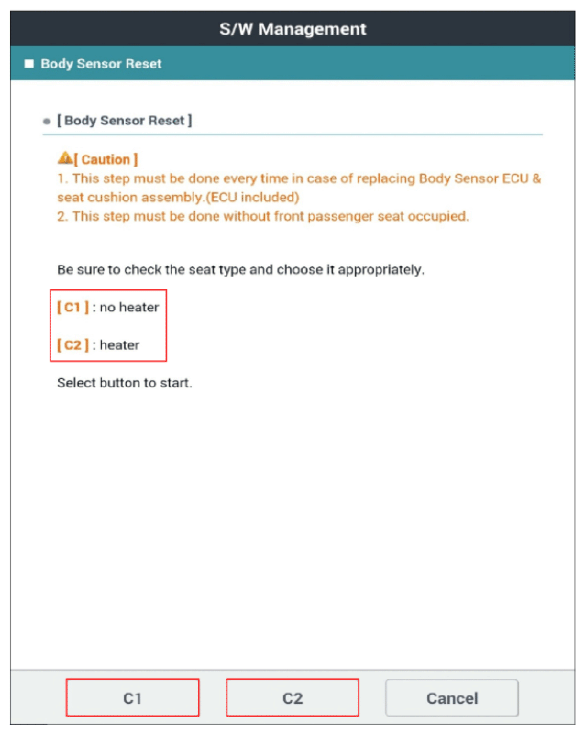

Courtesy of KIA MOTORS AMERICA, INC.

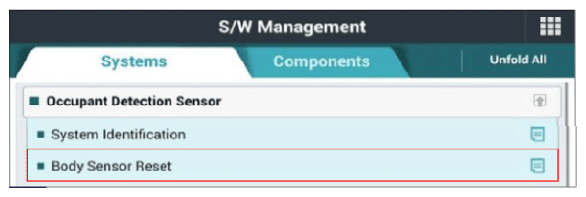

Courtesy of KIA MOTORS AMERICA, INC.

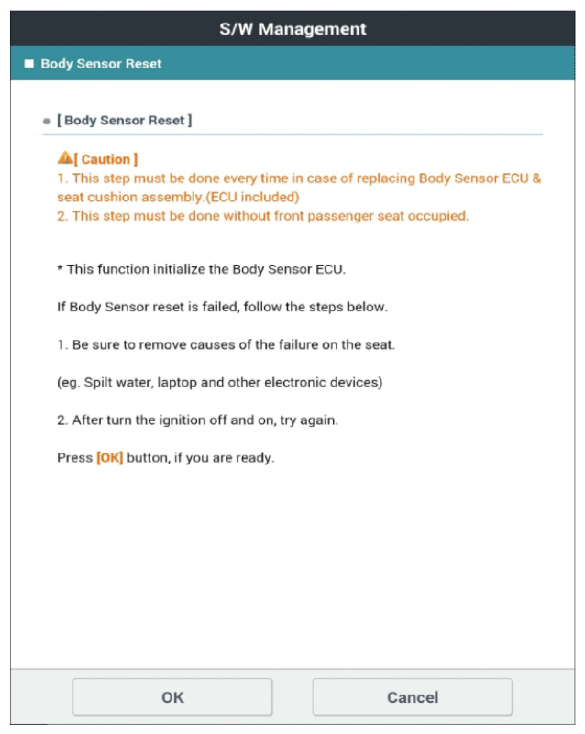

Courtesy of KIA MOTORS AMERICA, INC.

Good

Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
