Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

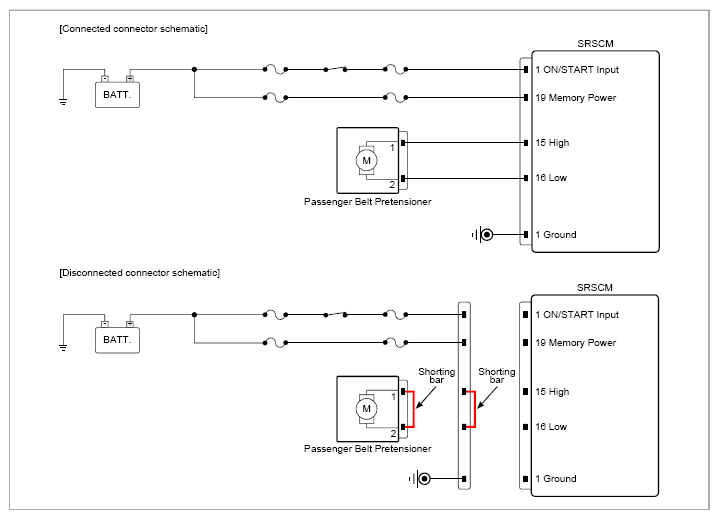

G13483604Courtesy of KIA MOTORS AMERICA, INC.

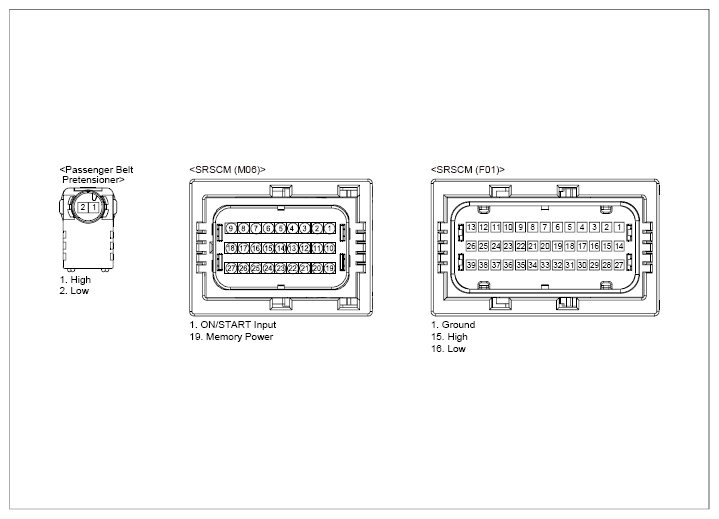

G13483605Courtesy of KIA MOTORS AMERICA, INC.
