Handling Wires And Harnesses

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure wires and wire harnesses to the frame with their respective wire ties at the designated locations.

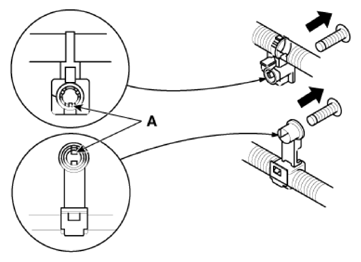

  2. Remove clips carefully; don't damage their locks (A).
    G13486540Courtesy of KIA MOTORS AMERICA, INC.

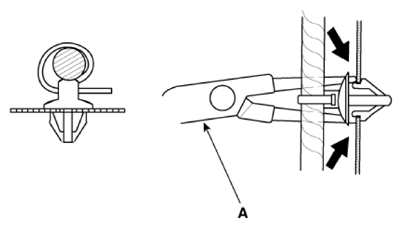

  3. Slip pliers (A) under the clip base and through the hole at an angle, and then squeeze the expansion tabs to release the clip.
    G13486541Courtesy of KIA MOTORS AMERICA, INC.
  4. After installing harness clips, make sure the harness doesn't interfere with any moving parts.
  5. Keep wire harnesses away from exhaust pipes and other hot parts, from sharp edges of brackets and holes, and from exposed screws and bolts.

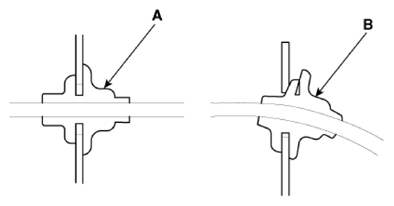

  6. Seat grommets in their grooves properly (A). Do not leave grommets distorted (B).
    G13486542Courtesy of KIA MOTORS AMERICA, INC.
