Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
Remove the rear brake caliper.
(Refer to Brake System - "REAR BRAKE CALIPER ")

NOTE: Fix the caliper assembly with a wire.

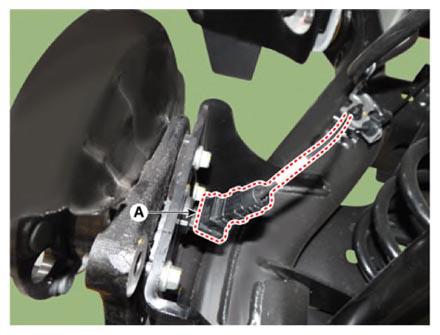

Disconnect the rear wheel speed sensor connector (A).
[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Information

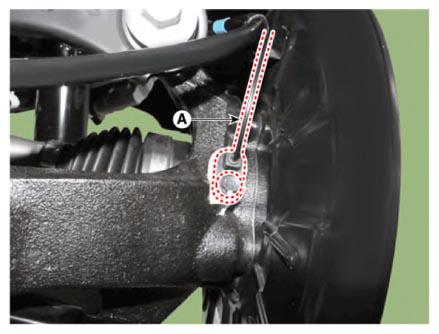

Disconnect the EPB connector (A). (EPB type only)

Courtesy of KIA MOTORS AMERICA, INC.

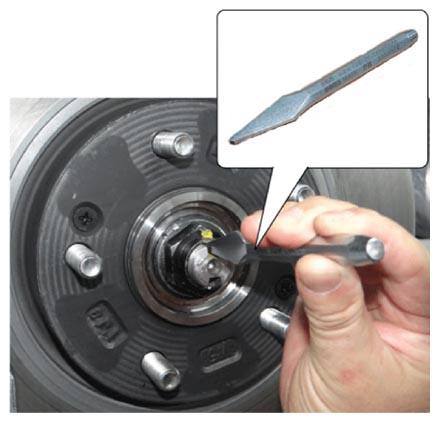

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

G13481097

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.

G13481098

Courtesy of KIA MOTORS AMERICA, INC.

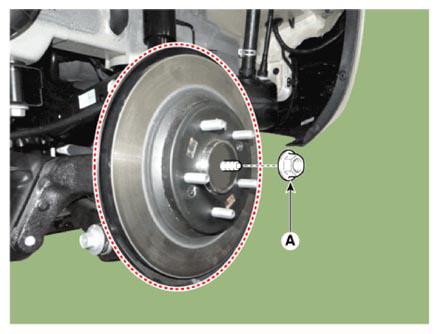

Remove the caulking nut (A) from the rear axle.

Tightening torque:

274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb.ft)

G13481099

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

G13481100

Courtesy of KIA MOTORS AMERICA, INC.

When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

G13481101

Courtesy of KIA MOTORS AMERICA, INC.

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.

If there are two key seats, perform on all two seats.

Caulking depth (A): 1.5 mm (0.0591 in)

G13481102

Courtesy of KIA MOTORS AMERICA, INC.

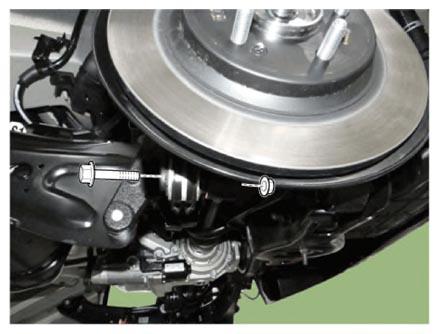

Loosen the rear lower arm mounting bolt and nut from the rear axle.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.2 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the rear assist arm mounting bolt and nut from the rear axle.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.2 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

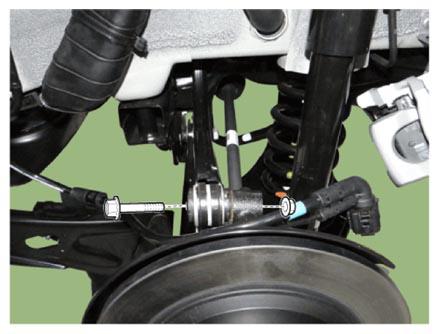

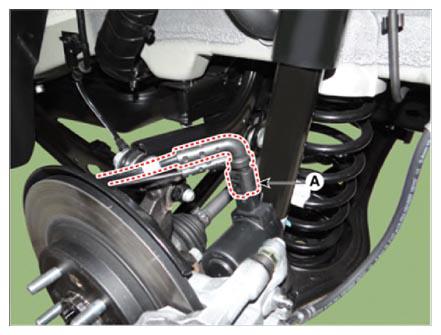

Loosen the rear upper arm mounting bolt and nut from the rear axle.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.2 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

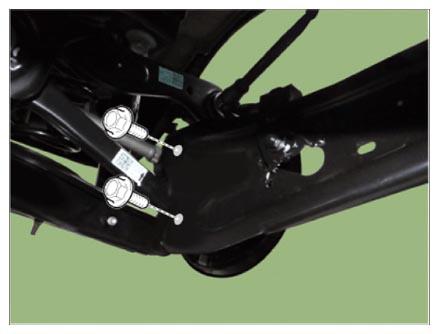

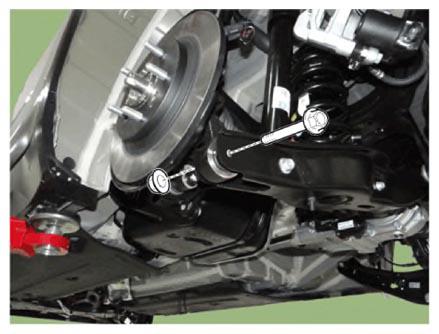

Loosen the rear trailing arm mounting bolt and nut from the rear axle.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.2 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

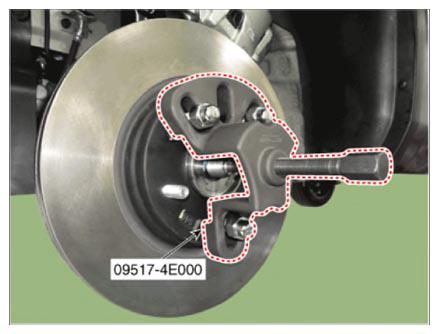

Separate the driveshaft from the front axle hub by using the SST (09517-4E000).
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.2 - 115.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Removing the driveshaft, do not force pull or over deflect the axle.

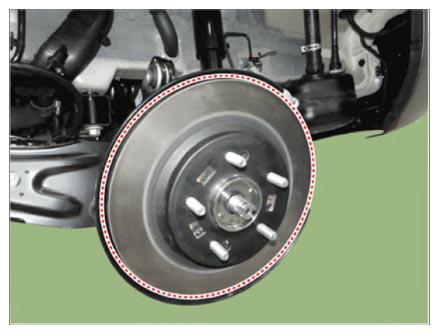

Remove the rear axle.

Courtesy of KIA MOTORS AMERICA, INC.
