Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

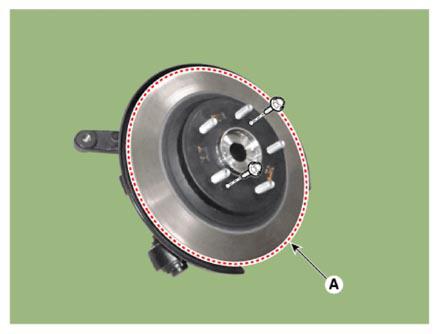

Loosen the screws and then remove the rear brake disc (A).
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

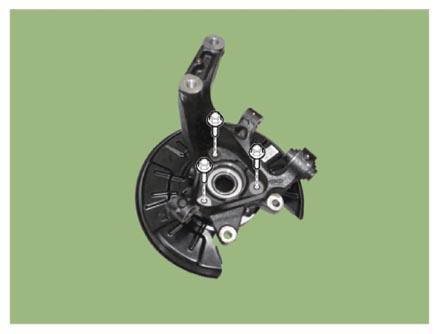

Loosen the hub bearing mounting bolts (A).
Tightening torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

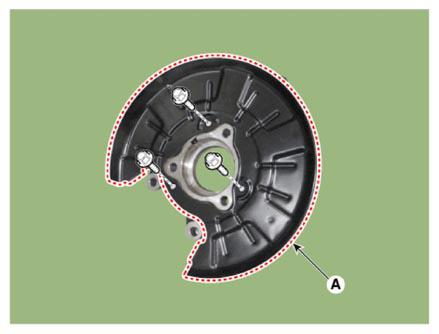

Remove the dust cover (A) from the knuckle.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
