Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

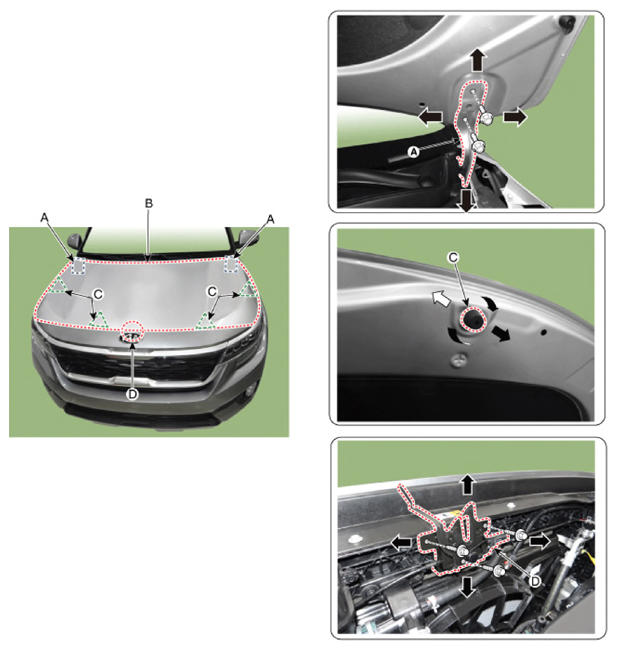

  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down or from side to side and tighten the bolt.
  2. Adjust the hood height by moving the hood overslam bumpers (C) up and down.
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down or from side to side.
    G13481853Courtesy of KIA MOTORS AMERICA, INC.
