Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Hood latch assembly]

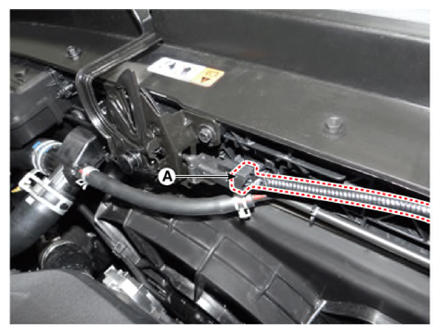

Disconnect the hood latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

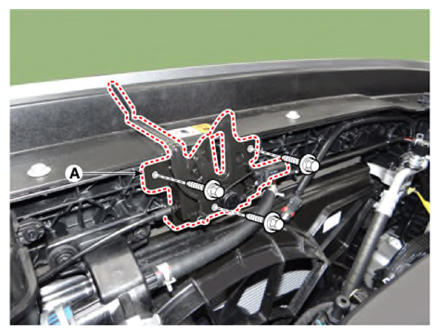

Loosen the mounting bolts and remove the hood latch assembly (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

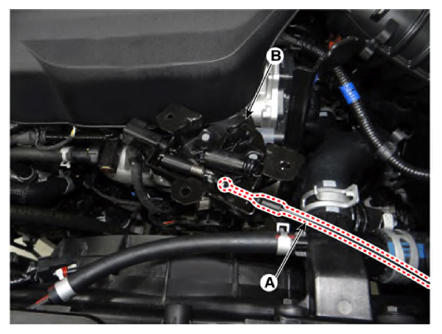

Disconnect the hood latch cable (A) and remove the hood latch (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
- Replace any damaged clips (or retainers or fasteners)

[Hood latch lock control cable]

Remove the cowl side trim [LH].
(Refer to Interior Trim - "COWL SIDE TRIM ")

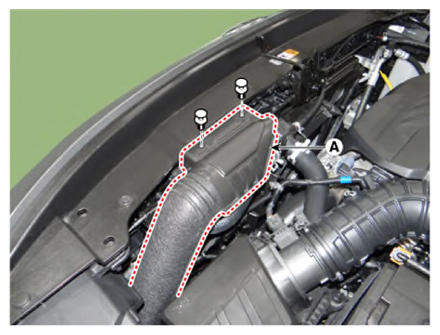

Remove the air duct (A) after loosening the clips.

Courtesy of KIA MOTORS AMERICA, INC.

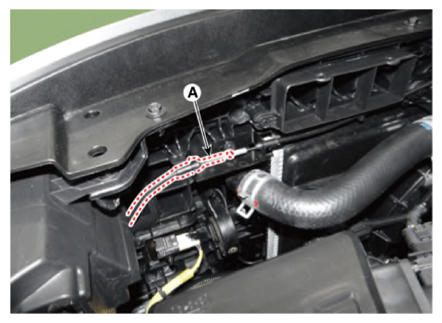

Disconnect the hood lock control cable from the hood latch cable (A).

Courtesy of KIA MOTORS AMERICA, INC.

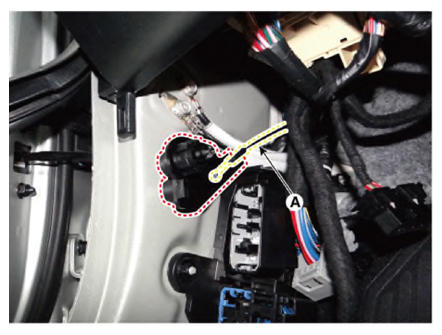

Loosen the mounting screws and then remove the hood lock control cable (A) from the hood latch release handle.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

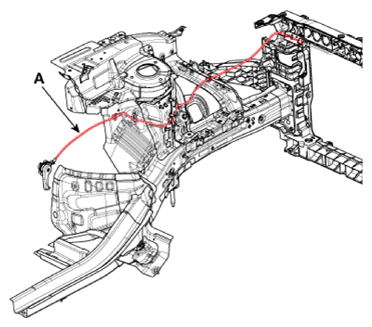

Remove the hood lock control cable (A) in the direction of the engine room.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
- Replace any damaged clips (or retainers or fasteners)
