Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative battery terminal.

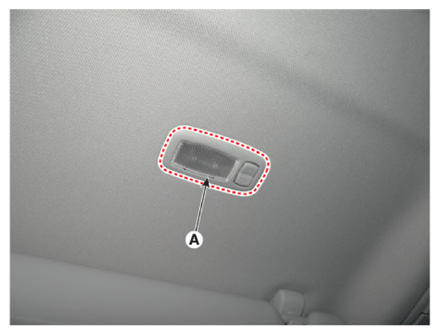

Remove the vanity lamp (A) using a flat-tip screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

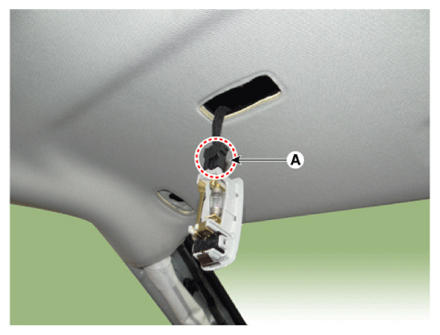

Disconnect the connector (A) from the vanity lamp.

Courtesy of KIA MOTORS AMERICA, INC.
