Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

  3. Loosen the sound mood lamp unit mounting nuts (A).
    G13486880Courtesy of KIA MOTORS AMERICA, INC.

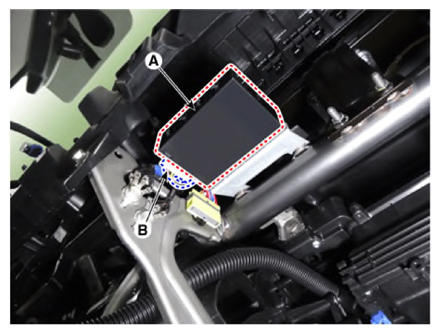

  4. Remove the sound mood lamp unit (A) after disconnecting the connector (B).
    G13486881Courtesy of KIA MOTORS AMERICA, INC.
