Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Front Side]

Disconnect the negative battery terminal.
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

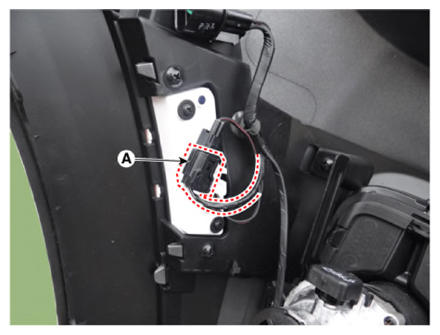

Disconnect the side marker lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

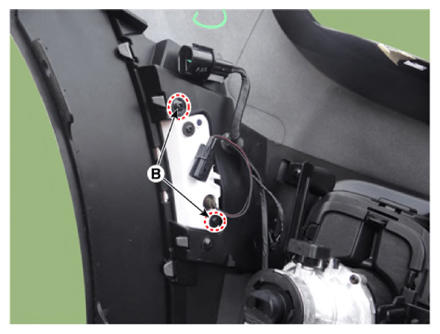

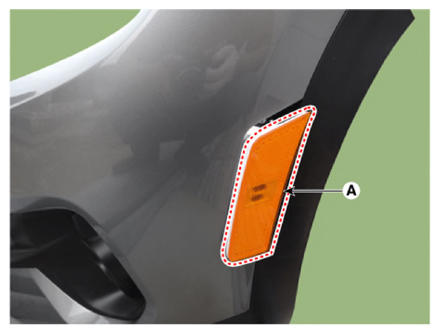

Remove the side marker lamp (A) by loosening the screws (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[Rear Side]

Remove the rear combination lamp (Outside).
(Refer to Lighting System - "REAR COMBINATION LAMP ")
