Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

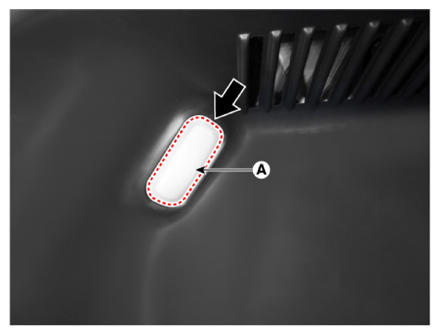

  2. Remove the luggage room lamp (A) by using flat tip screw driver.
    G13486826Courtesy of KIA MOTORS AMERICA, INC.

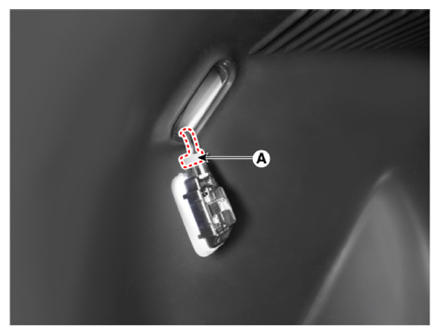

  3. Disconnect the luggage room lamp connector (A).
    G13486827Courtesy of KIA MOTORS AMERICA, INC.
