Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the rear spoiler.

    (Refer to Body - "REAR SPOILER ")

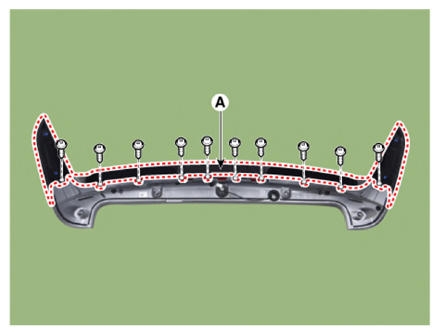

  3. Remove the rear spoiler garnish (A) after loosening the mounting screws.
    G13486819Courtesy of KIA MOTORS AMERICA, INC.

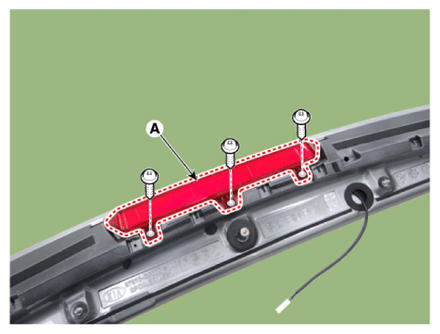

  4. Remove the high mounted stop lamp (A) after loosening the mounting screws.
    G13486820Courtesy of KIA MOTORS AMERICA, INC.
