Moisture Absorbent

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

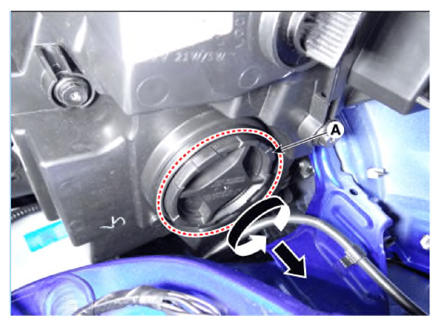

  1. Remove the dust cap (A) by turning it in the counterclockwise.
    G13486810Courtesy of KIA MOTORS AMERICA, INC.

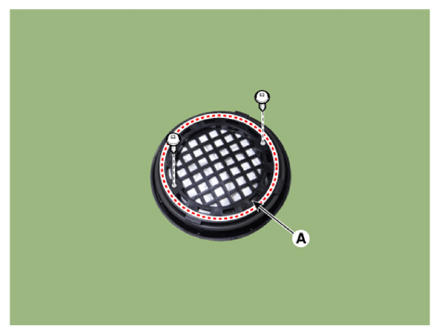

  2. Remove the moisture absorbent bracket (A) after loosening the mounting screws.
    G13486811Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the moisture absorbent bag (A).
    G13486812Courtesy of KIA MOTORS AMERICA, INC.

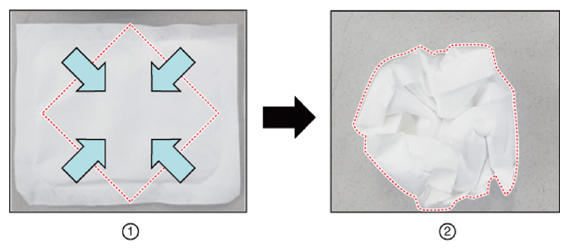

  4. Fold the new absorbent material as the picture below.
    G13486813Courtesy of KIA MOTORS AMERICA, INC.

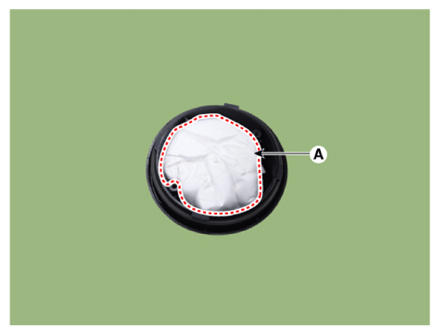

  5. Insert the moisture absorbent bag (A) with the folded sides up.
    G13486814Courtesy of KIA MOTORS AMERICA, INC.
