Repair Procedures: Replacement: Bulb

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[High/Low]

Disconnect the negative battery terminal.

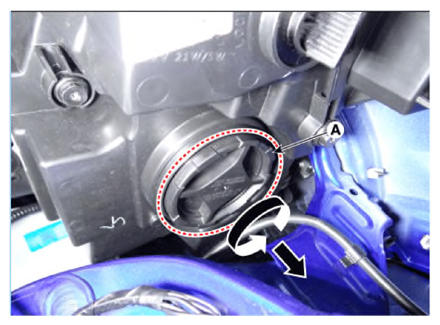

Remove the dust caps (A) after turning in the counterclockwise direction.

Courtesy of KIA MOTORS AMERICA, INC.

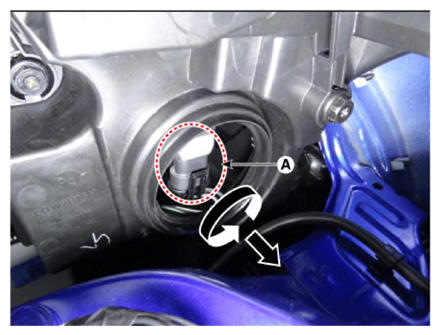

Remove the bulb socket (A) by turning it in the counterclockwise.

Courtesy of KIA MOTORS AMERICA, INC.

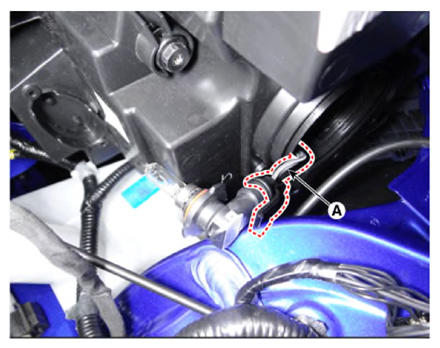

Disconnect the high/low beam bulb connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

[Turn signal lamp]

Disconnect the negative battery terminal.

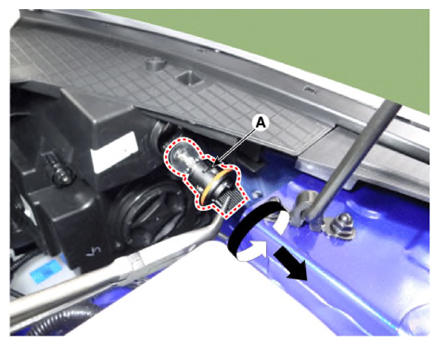

Remove the socket (A) by rotating in the counterclockwise.

Courtesy of KIA MOTORS AMERICA, INC.

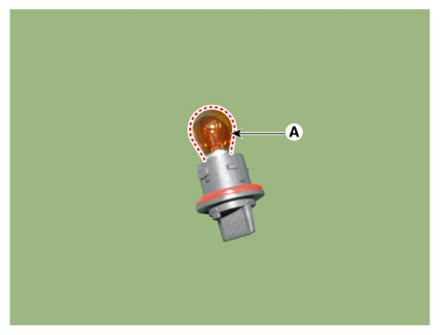

Replace the bulb (A) from the socket.

Courtesy of KIA MOTORS AMERICA, INC.
